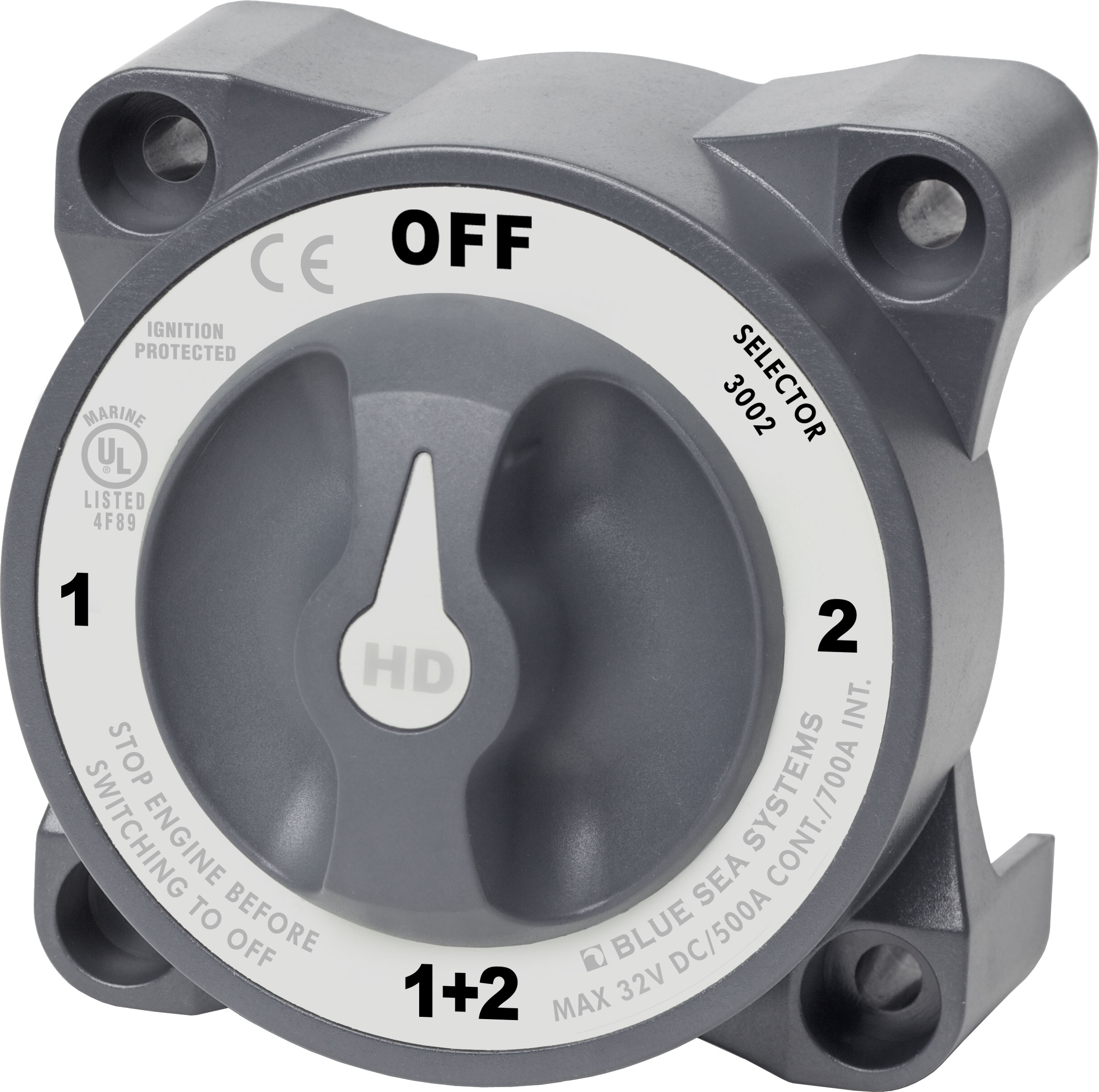

  Blue Sea HD-SERIES Battery 4 Position 500A
Click to enlarge

Blue Sea HD-SERIES Battery 4 Position 500A

Item #: BLU3002-BSS


Quantity:

40%

List Price:

$165.99

Price:

$99.99



Flat Rate $10.95 Shipping Available!

In Stock - Ships the next business day.
No restocking fees on return.

Click to verify BBB accreditation and to see a BBB report.

Details:

Blue Sea 3000 500A Battery Selector 4 Position Swiitch

Model: 3002-BSS
  • Tin-plated copper studs for maximum conductivity and corrosion resistance
  • Accepts up to 4/0 AWG battery cables
  • Studs accepts 1/2" (M12) ring terminals
  • 7/8" (22mm) stud length accepts multiple cable terminals
  • Blue Sea Systems one-piece terminal stud design never loosens over time
  • Fits most Perko and Guest low amperage battery switch hole patterns
  • Case design allows surface, rear, or front panel mounting options
  • Tactile indicator conveys knob position by feel
  • Waterproof — rated IP66 from water projected in powerful jets
  • Ignition protected—safe for installation aboard gasoline powered boats
  • Make-before-break contact design allows switching between battery banks without power interruption
Specifications
Switch TypeSelector 4 Position
ColorGrey
Switch Positions4
Battery CombineYes
Alternator Field DisconnectNo
Maximum Voltage32V DC
Terminal Stud Torque220 in-lb (24.86 Nm)
Continuous Rating500A
Intermittent Rating700A (5 min)
Cranking Rating 30 sec1600A
Battery Inputs2
Cable Clearance For 4/0 AWG Cables1.10in (27.94 mm)
Cable Quantity to Meet RatingsTwo Cables / Terminal
Cable Size to Meet Ratings4/0 AWG (120mm )
Mounting HolesAccept 1/4" (M6) Screw
Terminal Stud Size1/2" (M12)
