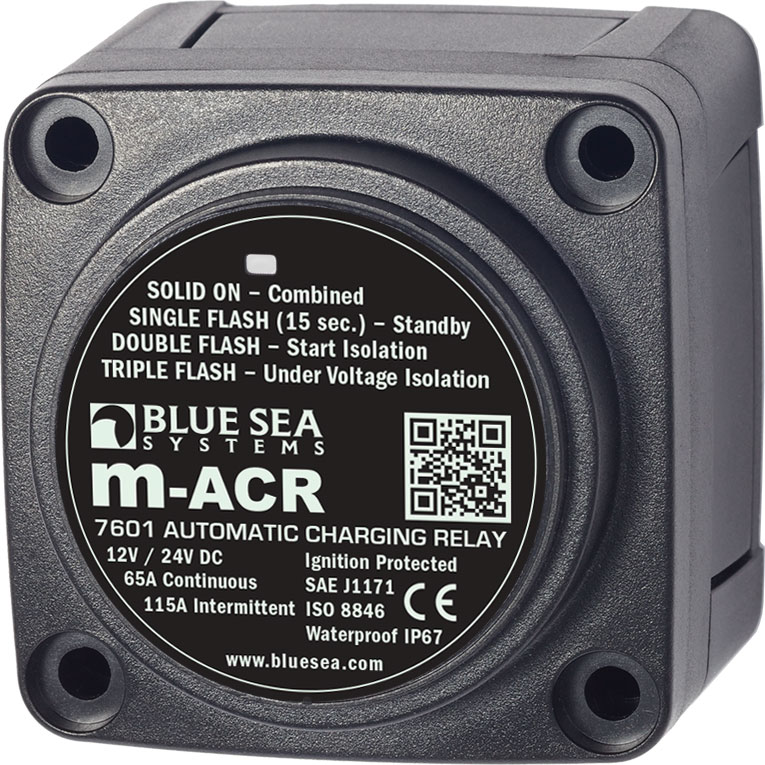

Blue Sea Systems m-Series Automatic Charging Relay - 12/24V DC 65A
Model: 7601-BSS
Senses charging on two battery banks
Pull off and snap on insulating cover
LED indicates ACR status
1 ?4" x .032" male quick connect terminal for ground
The Mini Automatic Charging Relay (M-ACR) is designed to manage the charging current from alternators up to 65 Amps found on most outboards and many inboard engines.
Start Isolation (SI) protects sensitive electronics by temporarily isolating house loads from the engine circuit during engine cranking, protecting the house circuit from voltage sags and spikes.
The compact design allows for three mounting styles: surface, rear, or panel mount. The M-ACR is also available as a module in a Custom 360 Panel.
Specifications
Nominal Voltage
12V DC 24V DC
Start Isolation
Yes
Amperage Operating Current
90mA (Combine) 15mA (Open)
Terminal Stud Torque
60 in-lb (6.78 Nm)
Continuous Rating
65A
Intermittent Rating
115A (5 min)
Cable Size to Meet Ratings
6 AWG
Maximum Cable Size
1/0 AWG
Stud Material
Tinned Brass
Terminal Stud Size
1/4" - 20 (M6)
Relay Contact Position
Combine 30 sec
13.6V DC
Open 10 sec
12.35V DC
Open 30 sec
12.75V DC
Open High
16.0V
Under Voltage Lockout
9.5V
