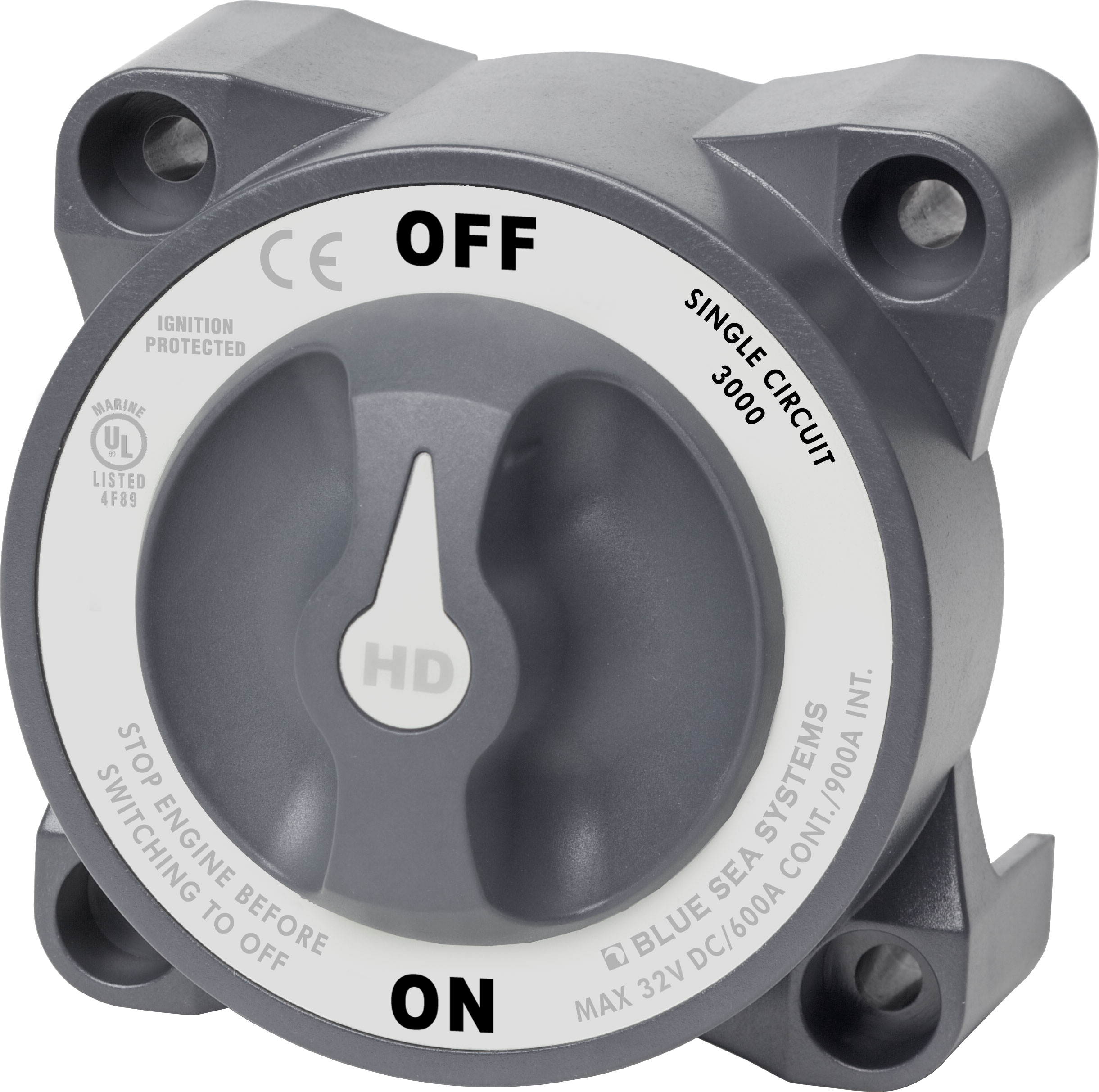

Blue Sea HD-SERIES Battery Switch On/Off 600A

Click to enlarge

Details:

Blue Sea 3000 600A Battery Selector Switch On-Off

Model: 3000-BSS

Tin-plated copper studs for maximum conductivity and corrosion resistance
Accepts up to 4/0 AWG battery cables
Studs accepts 1/2" (M12) ring terminals
7/8" (22mm) stud length accepts multiple cable terminals
Blue Sea Systems one-piece terminal stud design never loosens over time
Fits most Perko and Guest low amperage battery switch hole patterns
Case design allows surface, rear, or front panel mounting options
Tactile indicator conveys knob position by feel
Waterproof — rated IP66 from water projected in powerful jets

Specifications

Switch Type	Single Circuit ON-OFF
Color	Grey
Switch Positions	2
Battery Combine	No
Alternator Field Disconnect	No
Maximum Voltage	32V DC
Terminal Stud Torque	220 in-lb (24.86 Nm)
Continuous Rating	600A
Intermittent Rating	900A (5 min)
Cranking Rating 30 sec	1750A
Battery Inputs	1
Cable Clearance For 4/0 AWG Cables	1.10in (27.94 mm)
Cable Quantity to Meet Ratings	Two Cables
Cable Size to Meet Ratings	4/0 AWG (120mm )
Mounting Holes	Accept 1/4" (M6) Screw
Terminal Stud Size	1/2" (M12)
