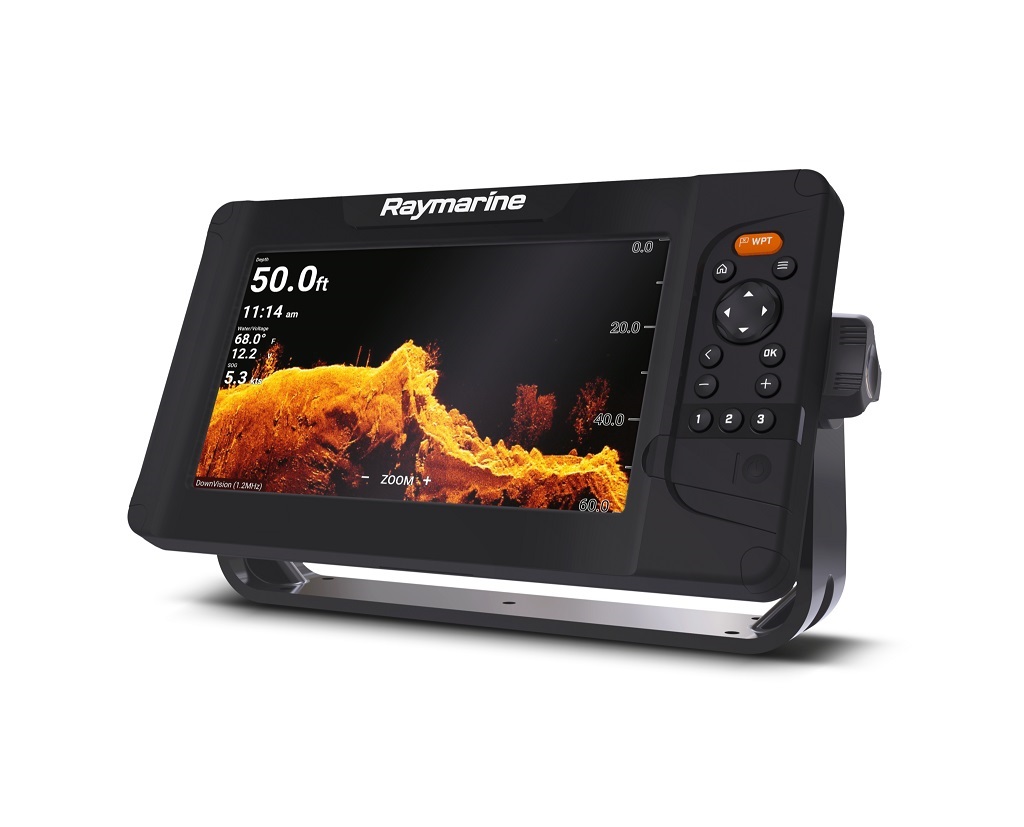

Raymarine Element 9 HV CHIRP Sonar/GPS with
Navionics Nav+ US & Canada Charts - No Transducer
Knowledge is power—and the Element CHIRP sonar/GPS series from Raymarine
gives you the upper hand when hunting for fish and their habitat. Delivering the
sharpest view of the underwater world, Element’s HyperVision 1.2 megahertz
sonar technology, turns up the resolution of DownVision, SideVision, and
RealVision 3D to a new level of precision imaging and fish identification,
letting you see structures, vegetation, and fish with amazing life-like clarity.
Features
- Bright and Rugged
Sunlight viewable displays with integrated GPS/GNSS receiver.
- RealVision 3D Built-In
Accurately identify the location of ledges, channel beds, and other contour
changes.
- Superior HyperVision
1.2 megahertz CHIRP sonar technology delivers much higher resolution imaging
compared to conventional side and down scanning sonars.
- Fast Quad-Core Processor
For instantaneous chart re-draw and sharp 3D imaging.
- All-in-one Transducer
Combines HyperVision, DownVision, SideVision, RealVision, and conventional
CHIRP sonar channels into one simple installation.
- Simple LightHouse Sport Operating System
Optimized for fishing, the LightHouse Sport OS is fast and easy-to-learn.
- Intuitive Controls
An oversized waypoint key for marking your favorite spots and three
user-programmable keys.
- Smart Mapping
With support for Raymarine LightHouse NC2 charts with Fishing Hot Spots®,
Navionics, and C-MAP.
- Make Your Own Maps
Raymarine RealBathy personal sonar mapping and Navionics SonarCharts Live
support.
Turn Up the Resolution with HyperVision
- HyperVision uses super high frequencies (1.2
megahertz) and CHIRP technology to bring a new level of precision imaging to
DownVision, SideVision and RealVision 3D
- 1.2 megahertz HyperVision mode is optimized
for super high-resolution imagery up to 100’ (30 meters)
- Switch to standard 350 kHz CHIRP sonar for
longer range, high-resolution imaging, and ranges up to 600’ (180 meters)
- Element’s advanced CHIRP sonar also operates
in the high-frequency 200kHz range for fish targeting, high-speed bottom
tracking, and depths up to 900ft
HyperVision CHIRP Transducers
The all-in-one design of Element's HyperVision
transducers make them compact and easy to install. Raymarine offers convenient
transom mount and thru-hull options to fit any boat.
New transducers:
- HV-100 All-in-one transom mount transducer
- HV-300TH All-in-one plastic thru-hull
transducer
- HV-300THP All-in-one thru-hull transducer
pair for deep v hulls
Connections
- Power and NMEA2000
- Transducer
Specifications
| General |
| Display Size |
9.0" Optically Bonded LCD |
| Display Resolution |
800 x 480 WVGA |
| Display Type |
Non-Touch |
| Brightness |
1,500 nits |
| Viewing Angle |
Top 50° / Bottom 60° / Left 70° / Right
70° |
| Physical |
Overall Dimensions
(W x H x D) |
287 x 161 x 62mm
(11.3 x 6.3 x 2.4 inches) |
| Product Weight |
5.0 lbs |
| Water Ingress Protection |
IPx6 and IPx7 |
| Operating Temperature Range |
-25°C to + 55°C (-13°F to 131°F) |
| Storage Temperature Range |
-30°C to +70°C (-22°F to 158°F) |
| Power |
| Voltage |
12V DC (8V to 16V DC) |
| Power Consumption (max 12V
DC) |
20 Watts |
| Sensors |
| GNSS/GPS |
Built-in GNSS Receiver: GPS/GLONASS |
| Sonar Type (Built-In) |
Built-in CHIRP Sonar, DownVision
(Standard and Hyper), SideVision (Standard and Hyper), RealVision 3D
(Standard and Hyper) |
| Sonar Connection |
15 pin HyperVision type connector |
| Sonar Depth |
CHIRP Sonar = 274m (900 feet)
DownVision Standard = 183m (600 feet) | DownVision Hyper = 30m (100
feet)
SideVision Standard = 91m (300 feet) | SideVision Hyper = 30m (100 feet)
RealVision 3D Standard = 91m (300 feet) | RealVision 3D Hyper = 30m (100
feet) |
| Networking |
| Ethernet |
N/A |
| NMEA 0183 |
N/A |
| NMEA 2000 |
1 x NMEA2000 port (DeviceNet microC) |
| Supported NMEA 2000
Networking |
INPUT: NMEA2000 Compatible Engines (Max
2) | NMEA2000 Compatible Tank Sensors (Max 4) | Heading Sensor (for
Chart Stabilization)
OUTPUT: GPS (for VHF Distress and DSC) |
| Seatalkng |
Requires A06045 DeviceNet female (F)
adapter cable - 400mm |
| USB |
N/A |
| Wi-Fi |
WiFi - 802.11 b / g / n |
| Bluetooth |
Bluetooth 4.0 + Low Energy + Power Class
1.5 |
| Other |
| Cartography |
Raymarine LightHouse NC2, Navionics,
C-MAP Essentials, C-MAP 4D MAX+, and compatible with all charts listed
on Raymarine Chart Store. |
| Tides & Currents |
Requires LightHouse LNC2, Navionics or
C-MAP |
| Waypoints/Routes/Tracks |
10,000 wpts / 200 wpt groups / 150 rts -
250 wpt max / 16 tracks - 10,000 max trk pts |
| Internal Memory |
8GB Solid State |
| External Memory |
1 x microSD slots - microSDHC max 32GB
NTFS or FAT32 format / microSDXC max 2TB NTFS or FAT32 format (microSD
native format of exFAT must be reformatted to NTFS or FAT32) |
What's In The Box
- Element 9 HV CHIRP Sonar/GPS
- Trunnion bracket with mounting hardware
- Surface mount kit with mounting hardware
- Sun cover
- Power / NMEA2000 1.5m cable
- Documentation pack
- Navionics Nav+ US & Canada Charts
|
