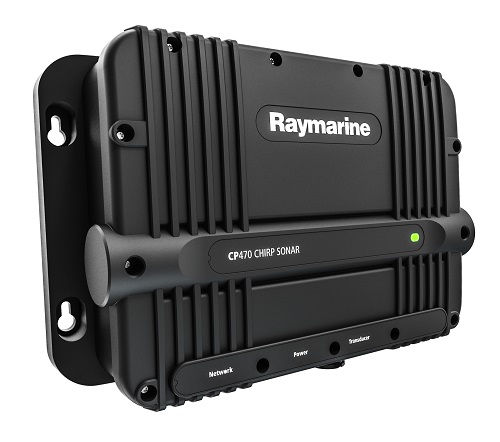

Raymarine CP470 CHIRP Sonar Module
Engineered for serious anglers, the CP470 sonar module bring best-in-class
target separation and high resolution CHIRP sonar imagery to Raymarine
multifunction displays. Using a wide spectrum of frequencies and greater
sensitivity the CP470's advanced CHIRP transceiver can see through dense schools
of baitfish, identify thermoclines, and simultaneously target desired game fish.
Rated for offshore use and rough conditions, the CP470 intelligently filters out
unwanted noise while producing high resolution fish targets and reliable bottom
tracking.
Serious Offshore Sonar
Superior target definition and enhanced sensitivity using Raymarine’s
exclusive wide spectrum CHIRP sonar technology.
- Target fish, identify bait, and track the sea floor down to 10,000ft.
(3,000m) with two adjustable CHIRP sonar channels.
Stunning Detail & Clarity
With 10 times the resolution of ordinary sonars the CP470 delivers sharper,
more defined fish targets and automatically filter out unwanted noise so you
never miss the action below.
- TruZoom magnification mode reveals extra target detail without any loss
of resolution
Easy to Customize
Choose optional low, medium, and high CHIRP frequency transducers in standard
or wide-beam to match your fishing preferences.
- The CP470 automatically recognizes connected transducers and adjust
sonar parameters for optimized performance
- View and control each CHIRP channel independently and create your own
combination of full or split screen sonar windows on Raymarine’s LightHouse
II powered multifunction displays
Specifications
| Sonar Type |
Wide Spectrum CHIRP |
| Power |
1kW / 2kW depending on transducer |
| Frequency & Channels |
Dual CHIRP from 25 to 250kHz |
| Depth Range |
10,000ft (3,000m) |
| Dimensions |
11.8" W x 7.9" H x 3.3" D |
Features
| TruZoom |
TruZoom provides magnified views of fish
targets, bottom structure, and baitfish without loss of resolution as
seen by traditional sonar Automatic
transducer identification with Airmar Xducer ID, Airmar Wide Beam
transducer compatible |
| Waterproofing Standard |
IPX6 waterproof |
| Compatability |
aSeries | cSeries | eSeries | gS Series |
| Nominal Supply Voltage |
12/24 V DC |
| Power Consumption |
30.6W (Maximum) |
| Connections |
Power connection | Network connection (RayNet
connector) 10/100 Mb/s | Transducer connection |
|
|
