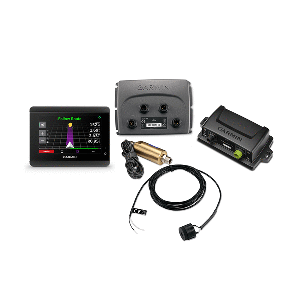

  Garmin Reactor 40 Hydraulic Autopilot with Ghc 50 Autopilot Instrument
Click to enlarge

Garmin Reactor 40 Hydraulic Autopilot with Ghc 50 Autopilot Instrument

Item #: GAR010-02794-00



Quantity:

Price:

$2,249.99



Free Shipping Available!


In Stock - Ships the next business day.
No restocking fees on return.

Click to verify BBB accreditation and to see a BBB report.

Details:

Reactor™ 40 Hydraulic Autopilot with GHC™ 50 Autopilot Instrument

** Not designed to be used with Garmin Smartpump**

Every Captain Needs a Co-Pilot.  Designed for powerboats, this Reactor 40 hydraulic autopilot with GHC™ 50 display gives you the extra hand you need, so you can explore paradise worry-free.

Features:

  • This Reactor 40 corepack is the perfect companion for your hydraulically steered system.
  • With its advanced solid-state 9-axis AHRS, you can mount Reactor 40 nearly anywhere, in any orientation.  It even reduces power consumption, minimizes heading error, and more.
  • Even when you’re pitching or rolling, this autopilot reacts to sea conditions to keep you on course.
  • You just want to get on the water, so we made calibration fast and easy.  That’s the power of simplicity.
  • Control your autopilot from anywhere on your boat by using your compatible Garmin devices, including the Reactor autopilot remote, select quatix® marine smartwatches, and more (requires a compatible Garmin chartplotter or GHC 50 autopilot instrument.)
  • Gain more freedom when maneuvering your boat.  This corepack allows for optional Shadow Drive technology to automatically disengage the autopilot when you turn the wheel.
  • Want more?  The optional GHC™ 50 autopilot instrument enhances your autopilot experience.
  • When connected to your compatible Garmin chartplotter, all Reactor 40 corepacks offer powerboat and sailing features, including heading hold and step turns — plus wind hold and tack/jibe when paired with a wind sensor (sold separately.)

Technical Specifications - Reactor 40 :

  • Unit dimensions (W x H x D) - 4.3" x 4.4" x 1.9" (10.9 x 11.2 x 4.8 cm)
  • Display resolution (W x H) - 320 x 240 pixels
  • Display Type - QVGA color LCD display
  • NMEA output - NMEA 2000
  • Supply voltage - 10 to 20V
  • Operating temperature - -15° C to 70 C° (5° F to 158° F)

Technical Specifications - GHC™ 50:

  • Dimensions (H x W x D) - 5.5” x 4.1” x 2.0” (14.0 x 10.5 x 5.1 cm)
  • Display Type - 800 x 480 WVGA
  • Display Size - 5" (12.7 cm)
  • Touch Display - Yes
  • Knob Control - With GRID 10/20
  • Remote Control via ANT+® Connectivity - Yes
  • Wi-Fi Connectivity - Yes
  • NMEA 2000 Networking - Yes
  • Ethernet - Yes

What's in the Box?

  • Reactor 40 CCU (Course Computer Unit)
  • GHC™ 50 marine autopilot touchscreen display
  • ECU (Electronic Control Unit)
  • ECU power cable
  • Interconnect cable
  • Shadow Drive
  • Buzzer
  • NMEA 2000® drop cables (2 meters)
  • NMEA 2000 power cable
  • NMEA 2000 T-connectors
  • Male and female terminators
  • Documentation

*Sold as an Individual



Did you Know?

ALL products we sell are factory new and come with the full Manufacturers Warranty!


Related Accessories:

Item # Description Price Order
GAR010-11053-02 Garmin 010-11053-02 Ecu Replacement for Reactor 40  $498.99  Add to cart
GAR010-11054-00 Garmin 010-11054-00 GHP-10 Shadow Drive  $332.99  Add to cart
GAR010-11056-00 Garmin 010-11056-00 Buzzer  $63.99  Add to cart
GAR010-11057-30 Garmin 010-11057-30 Power Cord for Ecu Threaded Collar  $62.99  Add to cart
GAR010-11076-04 Garmin 010-11076-04 4M NMEA 2K Backbone/Drop Cable  $23.99  Add to cart
GAR010-11078-01 Garmin 010-11078-01 NMEA 2K Multiport NMEA2000 T-CONNECTOR  $46.99  Add to cart
GAR010-11156-30 Garmin 010-11156-30 CCU Extension Cable, 5m, Threaded Collar  $27.99  Add to cart
GAR010-11156-31 Garmin 010-11156-31 Extension Cable, GHP 10 (15 m)  $43.99  Add to cart
GAR010-11156-32 Garmin 010-11156-32 25M Threaded-collar Extension Cable  $58.99  Add to cart
GAR010-11442-00 Garmin 010-11442-00 NMEA 2000 Starter Kit  $82.99  Add to cart
GAR010-11580-00 Garmin 010-11580 NMEA 2K Power Isolator  $19.99  Add to cart
GAR010-11829-00 Garmin 010-11829-00 GRF 10 - Rudder Feedback Sensor  $264.99  Add to cart
GAR010-11829-02 Garmin 010-11829-02 GRF 10 Extension Cable (15 m)  $47.99  Add to cart
GAR010-11829-01 Garmin 010-11829-10 GRF 10 Extension Cable (5 m)  $25.99  Add to cart
GAR010-00705-64 Garmin 1.2 Liter Pump Kit  $909.99  Add to cart
GAR010-00705-63 Garmin 2.0 Liter Pump Kit  $909.99  Add to cart
GAR010-02731-00 Garmin GHC50 Marine Autopilot Control Display  $799.99  Add to cart
GAR010-13007-00 Garmin GNA10 Jog Lever Adapter  $213.99  Add to cart
GAR010-11076-03 Garmin NMEA 2000 Backbone / Drop Cable (1FT)  $21.99  Add to cart
GAR010-11076-02 Garmin NMEA 2000 Backbone Cable (10M)  $31.99  Add to cart
GAR010-11076-00 Garmin NMEA 2000 Backbone Cable (2M)  $25.99  Add to cart
GAR010-11076-01 Garmin NMEA 2000 Backbone Cable (6M)  $27.99  Add to cart
GAR010-11089-00 Garmin NMEA 2000 Cable Right Angle  $23.99  Add to cart
GAR010-11095-00 Garmin NMEA 2000 Field Installable Connector, Female  $27.99  Add to cart
GAR010-11094-00 Garmin NMEA 2000 Field Installable Connector, Male  $27.99  Add to cart
GAR010-11096-00 Garmin NMEA 2000 In Line Terminator  $15.99  Add to cart
GAR010-11480-00 Garmin NMEA 2000 Network Updater  $66.99  Add to cart
GAR010-11078-00 Garmin NMEA 2000 T Connector  $19.99  Add to cart
GAR010-11081-00 Garmin NMEA 2000 Terminator, Female  $11.99  Add to cart
GAR010-11080-00 Garmin NMEA 2000 Terminator, Male  $11.99  Add to cart
GAR010-11052-67 Garmin Reactor 40 Ccu Unit for Hydraulic and Mechanical  $823.99  Add to cart
