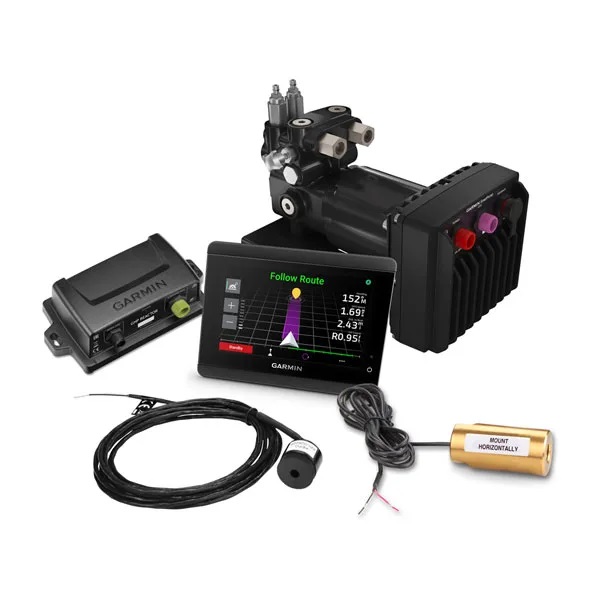

  Garmin Reactor 40 Autopilot with Smartpump V2 and GHC50
Click to enlarge

Garmin Reactor 40 Autopilot with Smartpump V2 and GHC50

Item #: GAR010-02794-01



Quantity:

Price:

$4,399.99



Free Shipping Available!


In Stock - Ships the next business day.
No restocking fees on return.

Click to verify BBB accreditation and to see a BBB report.

Details:

Garmin Reactor™ 40 Hydraulic Corepack with SmartPump v2 With GHC™ 50 Autopilot Instrument

Model: 010-02794-01
  • This Reactor 40 corepack is the perfect companion for your hydraulically steered system.
  • Yes, it features a solid-state 9-axis AHRS. And yes, that means you can mount it nearly anywhere.
  • Even when you’re pitching or rolling, this autopilot reacts to sea conditions to keep you on course.
  • You just want to get on the water, so we made calibration fast and easy. That’s the power of simple.
  • Combine with your compatible Garmin chartplotter, and control your autopilot — from anywhere on your boat.
  • Want more? The optional GHC™ 50 autopilot instrument enhances your autopilot experience.

Designed for powerboats, this Reactor 40 hydraulic corepack with SmartPump gives you the extra hand you need, so you can explore paradise worry-free.

This corepack’s compact, brushless SmartPump fits most sailboats and powerboats with a hydraulically steered boating system. It requires a compatible Garmin chartplotter or GHC autopilot instrument.

The SmartPump v2 is a one-size-fits-most solution that provides optimal control and confidence on the water. Plus, gain better thermal performance, higher reliability and lower power consumption.

With its advanced solid-state 9-axis AHRS, you can mount Reactor 40 nearly anywhere, in any orientation. It even reduces power consumption, minimizes heading error and more.

Hold your course on the sea — this autopilot reacts to conditions, so you can remain confident even when you’re pitching or rolling.

All autopilots require commissioning and calibration. Reactor 40 makes it quick and easy.

Gain more freedom when maneuvering your boat. This corepack allows for optional Shadow Drive technology to automatically disengage the autopilot when you turn the wheel.

Control your autopilot from anywhere on your boat by using your compatible Garmin devices, including the Reactor autopilot remote, select quatix® marine smartwatches and more (requires a compatible Garmin chartplotter or GHC 50 autopilot instrument).

Combine the Reactor 40 corepack with the GHC 50 autopilot instrument to add a dedicated, touchscreen autopilot display to your helm. Plus, GHC 50 allows you to share data and settings with Garmin MFDs and other installed Garmin devices.

When connected to your compatible Garmin chartplotter, all Reactor 40 corepacks offer powerboat and sailing features, including heading hold and step turns — plus wind hold and tack/jibe when paired with a wind sensor (sold separately). You can even gain additional benefits such as the follow route and Auto Guidance+™ features1.

1 Auto Guidance is for planning purposes only and does not replace safe navigation operations

Specifications
General
Dimensions (H x W x D)7 3/4" x 7 1/2" x 9 5/8" (197 mm x 190 mm x 244 mm)
Weight16.5 lbs (7.5 kg)
Temperature rangeFrom 5°F to 131°F (from -15°C to 55°C)
MaterialElectronics Control Unit (ECU) - fully gasketed, aluminum alloy; bracket - carbon steel; manifold - aluminum alloy; motor - aluminum alloy
Power cable length9 ft (2.7 m)
Power input11.5-30 Vdc
Fuse40 A, blade-type
Main power usagestandby - less than 1 A; engaged - 5-10 A; peak - 34 A
Flow rateConfigurable from 0 to 2.4 L per minute
Compatible with steering cylinder sizesfrom 4-24 cu in; 7 second lock to lock up to 17 cu in
CCU Specifications
Dimensions3 19/32" diameter (91.4 mm)
Weight5.6 oz (159 g)
Temperature rangeFrom 5°F to 131°F (from -15°C to 55°C)
Case materialFully gasketed, high-impact plastic, waterproof to IEC 529 IPX7 standards
CCU cable length9.5 ft (3 m)
NMEA 2000 power input9-16 V
NMEA 2000 LEN3 (150 mA)
Buzzer/Alarm Specifications
Dimensions (L Diameter)29/32" 1.0" (23 mm 25 mm)
Weight2.4 oz (68 g)
Temperature rangefrom 5°F to 131°F (from -15°C to 55°C)
Cable length10 ft (3.0 m)

What's in the Box:
  • GHC™ 50
  • SmartPump v2
  • Reactor 40 CCU (Course Computer Unit)
  • ECU (Electronic Control Unit) power cable
  • Interconnect cable
  • Shadow Drive
  • Buzzer
  • NMEA 2000® drop cables (2 meters)
  • NMEA 2000 power cable
  • NMEA 2000 T-connectors
  • Male and female terminators
  • Documentation
