Details: |
Features:
Wiring
- Color-coded wiring in 25' to 40' lengths with quick connects fittings, meets federal standards for heat, pull and insulation, making installation easy.
Solenoids
- They are custom designed for Insta-Trim Boat Leveler Co., epoxy sealed and humidity resistant, thereby preventing shorting out. The solenoids lock the tabs in any position, eliminating driftback. Barb type hose fittings provide tight, secure connections.
Motor
- A powerhouse with coated wirings and a thermal overload that resists temperature and amperage build-up. 1 3/4" stack windings and top mounting eliminated oil leakage. The motor is mounted with stainless steel nuts and bolts, and is easily disassembled.
Brackets
- Swivel type brackets allow cylinders to be mounted an adjusted to any angle. Knockout pins act as shear pins it tab strikes an object.
Pump
- Designed and engineered exclusively by Instatrim. The built-in bypass is factory set at 400 P.S.I. tolerance held to .00025. Amperage doesn't exceed 16 because the unit circulates oil, rather than stalling out or trying to pump additional pressure.
Motor Cover
- 4 1/2" D x 6" W x 11"H, high impact ABS plastic cover with a built-in oil reservoir mounts easily with two screws. The filler is located in front. Our cover protects the motor from occasional wash down.
Cylinders
- Impact resistant, fiberglass reinforced nylon cylinders eliminates expansion and resists ultra-violet rays. Two expanding type seals, plus O-ring, eliminates high and low pressure leaks. Barbed cylinder fitting and an inserted tubular rod prevents hose blow-off and breakage.
A stainless steel spring retracts the cylinder when the boat is not in motion.
Trim Tabs
- 12 gauge 304 stainless steel trim tabs are available in standard and custom lengths. They are guaranteed against electrolysis, remaining strong and secure. Insta-Trim's hinges prevent most spray and can be used for transom or bottom mounting.
Hose
- Designed and manufactured exclusively for Insta-Trim with nylon-reinforced webbing and protective PVC coating. Rated at 2000 lb. burst pressure, 15' of hose is supplied for your system. Entering the transom 6" above the water line, the hoses are held securely with hose trim.
Stainless steel clamps hold the hose to barb fitting at the solenoid.
Rocker Type Controls
- Mounted on the dash they are easy to operate. 2TP Micro switch with silver contact points adjust the tabs for maximum control and performance.
One pint of Insta-Trim biodegradable transmission oil, funnel and mounting hardware is supplied.
|
|
Did you Know?
ALL products we sell are factory new and come with the full Manufacturers Warranty! |
|
|
|
| |
Related Accessories: |
| BLV12727 |
Boat Leveler Hydraulic Cylinder
|
$114.99 |
|
| BLV12701-12 |
Boat Leveler Solenoid Valve - Green Wires
|
$85.99 |
|
| BLV12641-12 |
Boat Leveler Solenoid Valve - White Wires
|
$85.99 |
|
| BLV2900BWL |
Boat Leveler Tab Locator - Black
|
$331.99 |
|
| BLV2900WBL |
Boat Leveler Tab Locator - White
|
$331.99 |
|
| BLV12700UNIV |
Boat Leveler Universal Motor
|
$315.99 |
|
| BTL1030 |
BoatLife 1030 Life Calk Tube White
|
$15.99 |
|
| BTL1031 |
BoatLife 1031 Life Calk Tube Black
|
$15.99 |
|
| BTL1032 |
BoatLife 1032 Life Calk Sealant Tube Mahogany
|
$16.99 |
|
| BTL1033 |
BoatLife 1033 Life Calk Cartridge White
|
$29.99 |
|
| BTL1034 |
BoatLife 1034 Life Calk Cartridge Black
|
$29.99 |
|
| BTL1035 |
BoatLife 1035 Life Calk Cartridge Mahogany
|
$29.99 |
|
| BTL1036 |
BoatLife 1036 Life Calk Cartridge Teak Brown
|
$29.99 |
|
| BTL1052 |
BoatLife 1052 Liquid Life Calk Tube White
|
$18.99 |
|
| BTL1055 |
BoatLife 1055 Liquid Life Calk Tube Black
|
$18.99 |
|
| BTL1160 |
BoatLife 1160 Life Seal Sealant Tube Clear
|
$16.99 |
|
| BTL1161 |
BoatLife 1161 Life Seal Sealant Tube White
|
$16.99 |
|
| BTL1162 |
BoatLife 1162 Life Seal Sealant Tube Black
|
$16.99 |
|
| BTL1169 |
BoatLife 1169 Life Seal Sealant Cartridge Clear
|
$29.99 |
|
| BTL1170 |
BoatLife 1170 Life Seal Sealant Cartridge White
|
$29.99 |
|
| BTL1171 |
BoatLife 1171 Life Seal Sealant Cartridge Black
|
$29.99 |
|
| SUD300 |
Sudbury 300 White Elastomeric Marine Sealant 10oz Cartridge
|
$16.99 |
|
| SUD302 |
Sudbury 302 Black Elastomeric Marine Sealant 10oz Cartridge
|
$16.99 |
|
| SUD320 |
Sudbury 320 White Elastomeric Marine Sealant 3oz Tube
|
$9.99 |
|
| SUD321 |
Sudbury 321 Clear Elastomeric Marine Sealant 3oz Tube
|
$11.99 |
|
| TNSR1 |
Tecnoseal R1 Rudder Anode - Zinc - 1-7/8" Diameter
|
$4.59 |
|
| TNSR1AL |
Tecnoseal R1AL Rudder Anode - Aluminum - 1-7/8" Diameter
|
$5.99 |
|
| TNSR1MG |
Tecnoseal R1MG Rudder Anode - Magnesium - 1-7/8" Diameter
|
$6.99 |
|
| TNSR2 |
Tecnoseal R2 Rudder Anode - Zinc - 2-13/16" Diameter
|
$9.99 |
|
| TNSR2AL |
Tecnoseal R2AL Rudder Anode - Aluminum - 2-13/16" Diameter
|
$9.99 |
|
| TNSR2MG |
Tecnoseal R2MG Rudder Anode - Magnesium - 2-13/16" Diameter
|
$18.99 |
|
| TNSR3 |
Tecnoseal R3 Rudder Anode - Zinc - 3-3/4" Diameter
|
$14.99 |
|
| TNSR3AL |
Tecnoseal R3AL Rudder Anode - Aluminum - 3-3/4" Diameter
|
$13.99 |
|
| TNSR3MG |
Tecnoseal R3MG Rudder Anode - Magnesium - 3-3/4" Diameter
|
$27.99 |
|
|
|
|
|

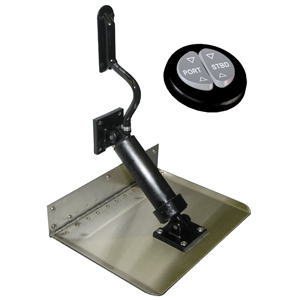

Boat Leveler 12" X 8" Trim Tab Set - Boat Leveler Trim Tabs
|
