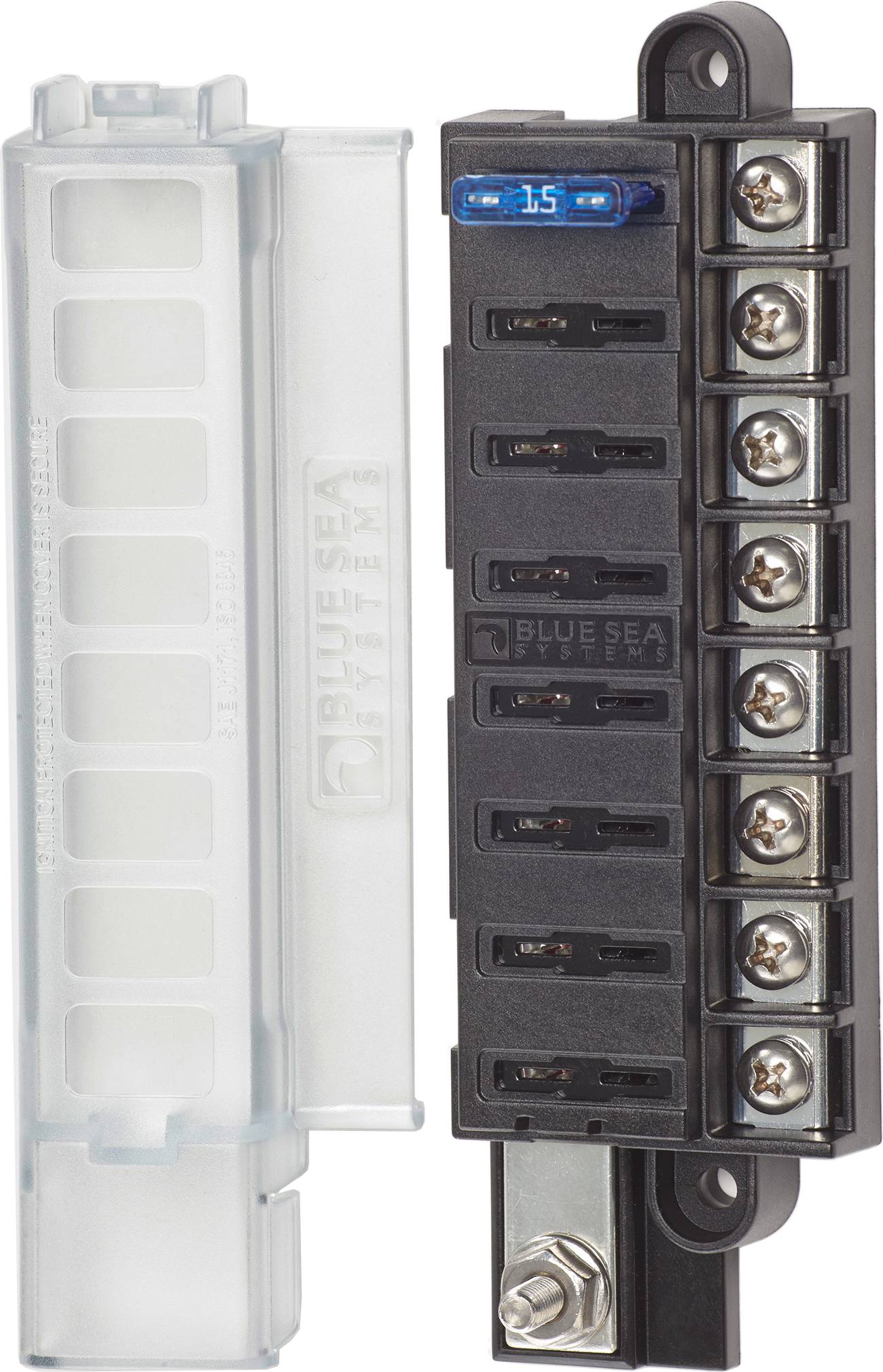

Blue Sea 5046 8-CIRCUIT Fuse Block St Ato/Atc with Cover

Click to enlarge

Details:

Blue Sea Systems ST Blade Compact Fuse Blocks - 8 Circuits

Model: 5046-BSS

Ignition protected when cover is secure —meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment
Single side design allows wire entry from one side to minimize footprint
Insulating cover meets ABYC/USCG insulation requirements
Tin-plated copper buses and fuse clips
Accepts ring or snap fork type terminals
Includes 8 write-on circuit labels
Fuses sold separately

Specifications

Circuits	8
Maximum Amperage	100A per block 30A per circuit
Maximum Voltage	32V DC
Mounting	#8 Screw (M4)
Terminal Stud Torque	24 in-lb (2.71 Nm)
Screw Terminal Torque	18 in-lb (2.03 Nm)
Screw Terminal Type	#8-32 Scews with captive star lock washer
Terminal Stud Size	#10-32
