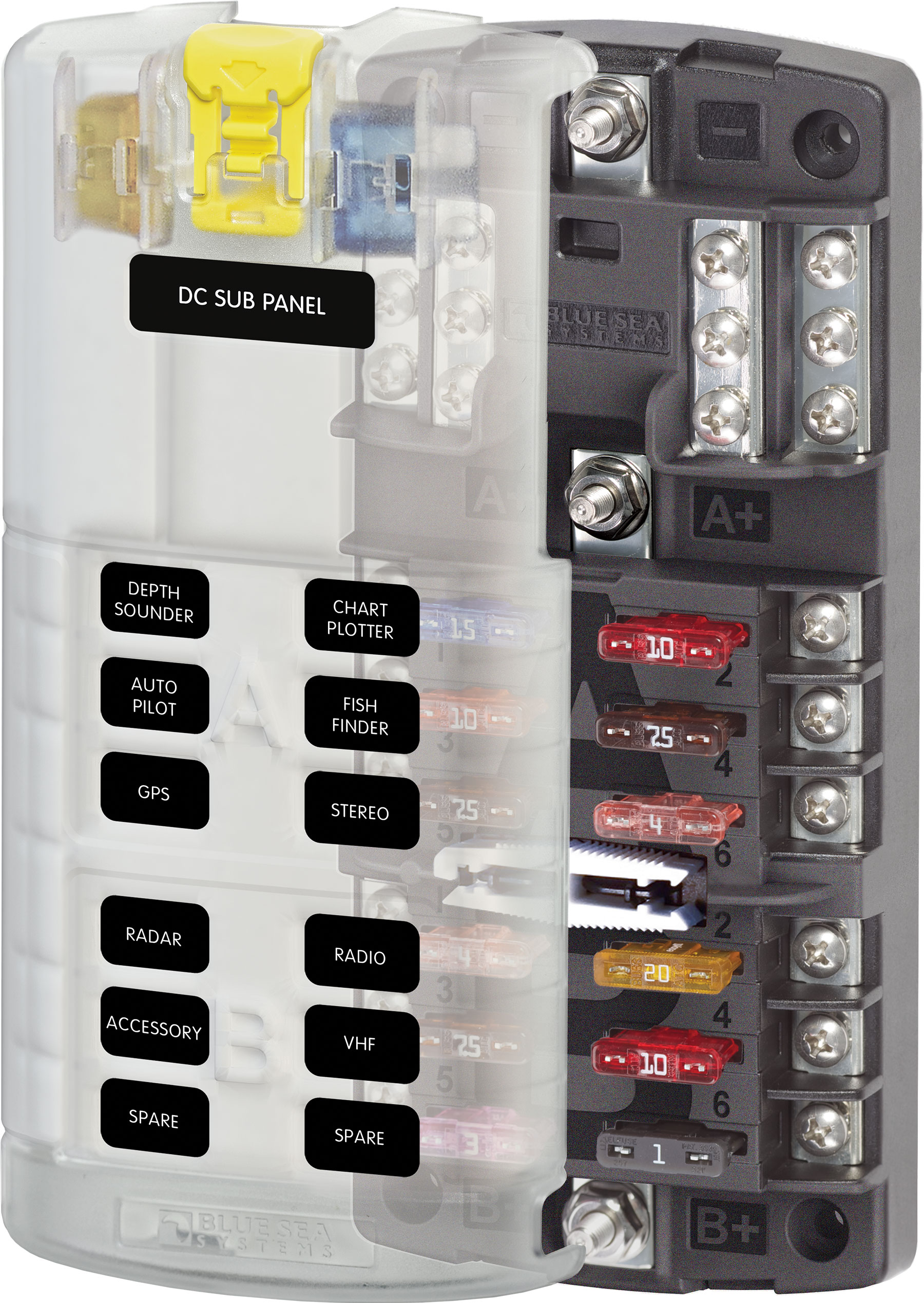

Blue Sea Systems ST Blade Split Bus Fuse Block 12 Circuits
Model: 5032
Provides two isolated groups of six ATO®/ATC® circuits
For use with either two isolated batteries or with a single battery providing a mix of 24 hour and switched circuits
Screw terminals for securing wires accept ring terminals
One-piece stainless flange nuts ensure safe and secure connections
Clear insulating cover with label recesses and storage for two fuses, satisfies ABYC/USCG insulation requirements
Easy to open, push button latch for easy access to fuses
Tin-plated copper buses and fuse clips
Fuses sold separately
The ST Blade Fuse Block can offer a space saving and cost effective solution to adding circuit protection when there are limited available circuit breakers on the distribution panel. A single circuit breaker on a distribution panel can provide the circuit protection for the feed wire to the ST Blade Fuse Block. This is frequently done for electronics that each have their own ON-OFF switch and don’t require the switching offered by a circuit breaker. The 6 or 12 position ST Blade Fuse Block then provides a consolidated location for fuses for each of the electronics.
Specifications
Circuits
12
Maximum Amperage
100A per block 30A per circuit
Maximum Voltage
32V DC
Mounting
#8 Screw (M4)
Negative Bus
#10-32 Stud
Positive Bus
#10-32 Stud
Recommended Torque
24 in-lb (2.71 N m)
Screw Terminal Torque
18 in-lb (2.03 Nm)
Screw Terminal Type
#8-32 Screws with captive star lock washer
Weight
0.75lb (0.25 kg)
Dimensions
6.472" h x 3.315" w x 1.518" d
