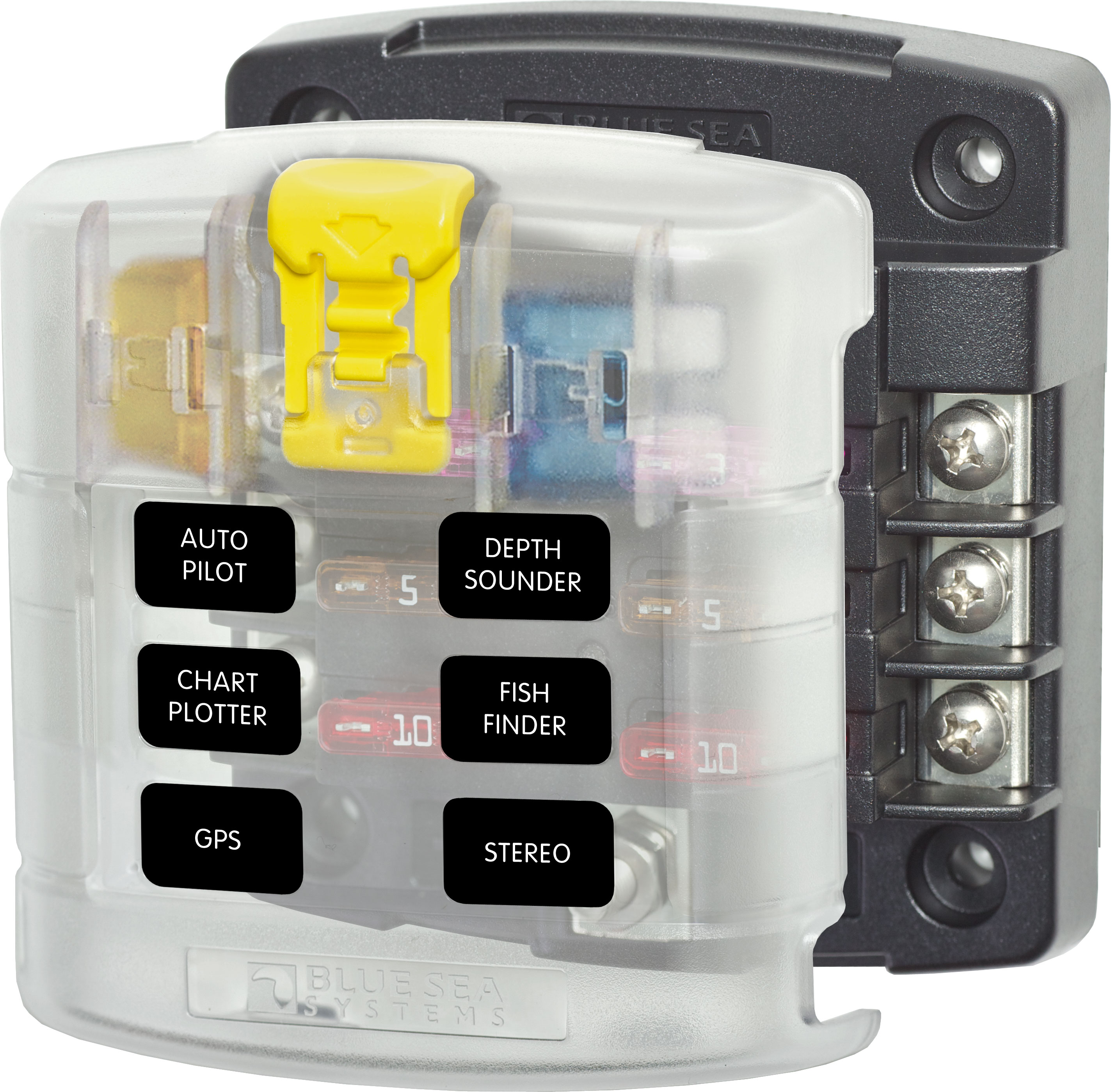

Blue Sea Systems ST Blade Fuse Block - 6 Circuits with Cover
Model: 5028-BSS
Positive distribution bus with #10-32 stud
Can be used for 24-hour circuits
Cover satisfies ABYC/USCG requirements for insulation, incorporates an easy to open push button latch providing easy access to fuses, storage for two spare fuses, and label recesses that accept Blue Sea Systems" Small Format Labels for circuit identification
Fuse blocks with covers include 20 write-on circuit labels
Tin-plated copper buses and fuse clips
Accepts ring or snap fork type terminals
Accepts ATO® and ATC® fast acting blade fuses
Fuses sold separately
Specifications
Circuits
6
Maximum Amperage
100A per block 30A per circuit
Maximum Voltage
32V DC
Mounting
#8 Screw (M4)
Positive Bus
#10-32 Stud
Recommended Torque
24 in-lb (2.71 N m)
Screw Terminal Torque
18 in-lb (2.03 Nm)
Screw Terminal Type
#8-32 Screws with captive star lock washer
