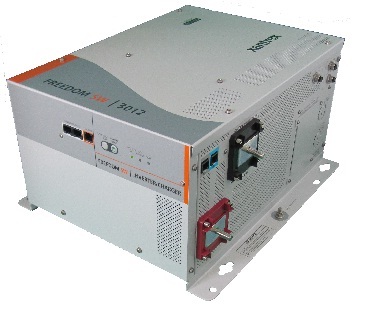

  Xantrex Freedom SW2012 12V 2000W Inverter 100A Charger
Click to enlarge

Xantrex Freedom SW2012 12V 2000W Inverter 100A Charger

Item #: XAN815-2012



Quantity:

41%

List Price:

$2,654.08

Price:

$1,567.99



In Stock - Ships the next business day.
No restocking fees on return.

Click to verify BBB accreditation and to see a BBB report.

Details:

Powerful. Configurable. Versatile...

The NEW GENERATION Freedom SW series represents highly sophisticated and advanced inverter/ chargers available in 3000 W with 150 A charger and 2000 W with 100 A charger models.

The second generation 2000 watt model has been completely redesigned to include many of the same great features found in its high power counterpart.A key feature enhancement is ?Generator Support Mode? which enables the Freedom SW to supplement a generator¹ when AC loads exceed the generator?s capacity. The new generation models also feature improved AC transfer/AC input detection time, providing the ability to transfer AC loads to batteries in less than 10 milliseconds when the incoming grid or generator power is lost. Connected loads are almost unable to feel the power transition due to this quick transfer time. Both models are approved to UL458 with marine supplement, CSA, ABYC and FCC, Class B requirements.

NEW - PARALLEL AND SERIES STACKING

Parallel stacking enables the Freedom SW inverter/chargers to double the AC output in inverter mode. Series stacking enables the Freedom SW inverter/chargers to generate 120/240 V split phase output²

² AC source must be split phase, requires Stacking Cable (part# 808-9005)

ApplicationDesigned for a variety of mobile applications such as commercial, emergency and recreational vehicles, marine vessels, construction and military equipment.

  • Pure sine wave output to operate sensitive electronics
  • Advanced configuration options for customized applications
  • Parallel and series stacking capability
  • Built-in transfer switch automatically transfers between inverter power and incoming AC power
  • Power factor corrected, multi-stage charger for fast, efficient charging
  • Temperature compensated charging for a vareity of climate conditions
  • Ignition lockout feature helps prevent unnecessary battery drain when the alternator is not providing power*
  • Wide operating temperature range: -4°F to 140°F (-20°C to 60°C)
  • Conformal coated circuit boards for humid environments
  • Dual input / Dual output AC interface for 3000 W model
  • Ability to charge batteries drained to extremely low voltage
  • Compatible with the Xantrex Automatic Generator Start** (Part# 809-0915)

*When used with the remote panel
**Sold separately

Protection Features

  • Battery over-voltage and under-voltage protection
  • Over-temperature shutdown
  • Automatic overload protection
  • Short-circuit protection
  • Integrated, resettable AC breakers

Specifications

Inverter Specifications Freedom SW 2012 - 815-2012 Freedom SW 3012 - 815-3012
Output power (continuous @ 40°C) 2000W 3000W
Surge rating (5 seconds) 4000W 6000W
Peak output current 55A 80A
Output frequency 60Hz +/- 0.2hz 60Hz +/- 0.2hz
Output voltage 120 Vac 120 Vac
Output wave form Pure sine wave Pure sine wave
Optimal efficiency 90% 90%
No-load power draw (inverting) 3Adc 3Adc
Input DC voltage range 10 - 16Vdc 10 - 16Vdc
AC connections Single phase in/out Split phase in/dual out, Dual in / dual out
Charger Specifications
output current (continuous @ 25°C) 100A 150A
output voltage 12Vdc 12Vdc
Output voltage range 3 - 16Vdc 3 - 16Vdc
Charge control 3 stage with manual equalize 3 stage with manual equalize
Charge temperature compensation Remote battery sensor (included) Remote battery sensor (included)
Optimal efficiency >85% >85%
AC input power factor (maximum charge) 0.98 typical 0.98 typical
Input current (for maximum charging) 16A rms nominal 24A rms nominal
Input AC voltage 120vac 120vac
Input AC voltage range 85-140Vac 85-140 Vac
Dead battery charge >3Vdc >3Vdc
General Specifications
Compatible battery types Flooded/Gel/AGM Flooded/Gel/AGM
Tranfer relay rating 1 leg 30A 2 legs 30A each
Transfer time ( AC to inverter and Inverter to AC) < 20ms < 20ms
Optimal operating temperature range -4°F to 140°F -4°F to 140°F
Storage ambient temperature range -40°F to 185°F -40°F to 185°F
Unit Dimension 7.75" x 13.5" x 15.25" 7.75" x 13.5" x 15.25"
Unit Weight 60.5lbs 73.7lbs
Warranty 2 years 2 years
