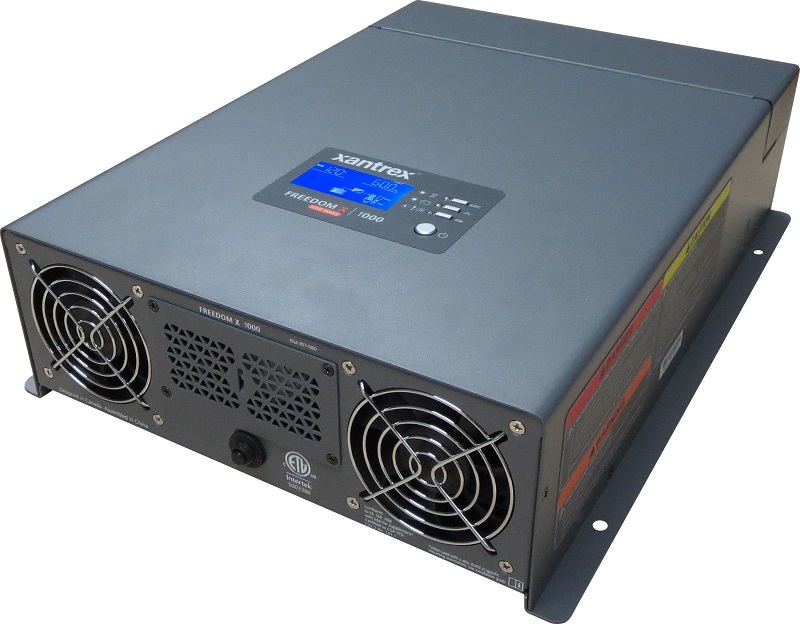

Xantrex Freedom X1000 1000W True Sine Wave Inverter

Click to enlarge

Details:

Xantrex Freedom X 1000 Watt True Sinewave Inverter

Model: 817-1000

Extended Surge Rating: Surges to 2X continuous power for 2 seconds for motor loads
True Sine Wave AC Power: For operation of sensitive and motor loads
Ignition Control: Feature to turn inverter on/off via a 12 VDC signal and to minimize battery drain by switching the inverter off when the ignition key is turned off
Wide 10-18 VDC Input Range: Ensures inverter operation on high voltage alternators found on many new vehicle chassis
Built-in 30A AC Transfer Relay: Senses when outside AC Power is present and transfers the load from the inverter to the source of incoming power (shore or generator). The unit also automatically switches from invert mode to charge mode
Quick Installation: Huge wiring bay for easy access and quick connect AC in/out terminals for fast & easy wiring

The Freedom X inverter offers premium performance in a lightweight compact package. It cranks out full output from -4°F - 104°F for operation in all climate temperatures. The extended surge rating of the Freedom X makes it ideal to start difficult loads including fridge and microwave. The quick connect terminals at AC IN/OUT make installation a breeze.

Specifications

Electrical Specifications
Operating voltage	120, 110, 108 VAC
Continuous power	Continuous Power 1000 W @40 C True sine wave
Continuous current	8.4 Amps
Surge power	2000 watts
Frequency	60 Hz
Peak efficiency	91%
Full load efficiency	Greather than or equal to 87%
Operating voltage range	85-140 VAC
Safe Non-Operating voltage range	Up to 240VAC
General Specifications
Operating temperature range	-4 to 140 F (-20 to 60 C), with output derated above 104 F (40 °C)
Storage Temperature Range	-40 to 158 F (-40 to 70 C)
Humidity	5 to 95% RH, non-condensing
Transfer Relay Rating	30Amp
Operating voltage range	LBCO voltage - 18.0 VDC
Maximum Non-Operating Voltage	24.0 VDC
Nominal Voltage (Inverting)	12 VDC
Nominal Current at Full Load	100ADC
Dimensions	14.2"(360mm) x 10.6"(270mm) x 3.7"(95mm)

What's in the Box:

Freedom X unit
Pre-installed ground lug
Documentation

Did you Know?

ALL products we sell are factory new and come with the full Manufacturers Warranty!
