Details: |
|

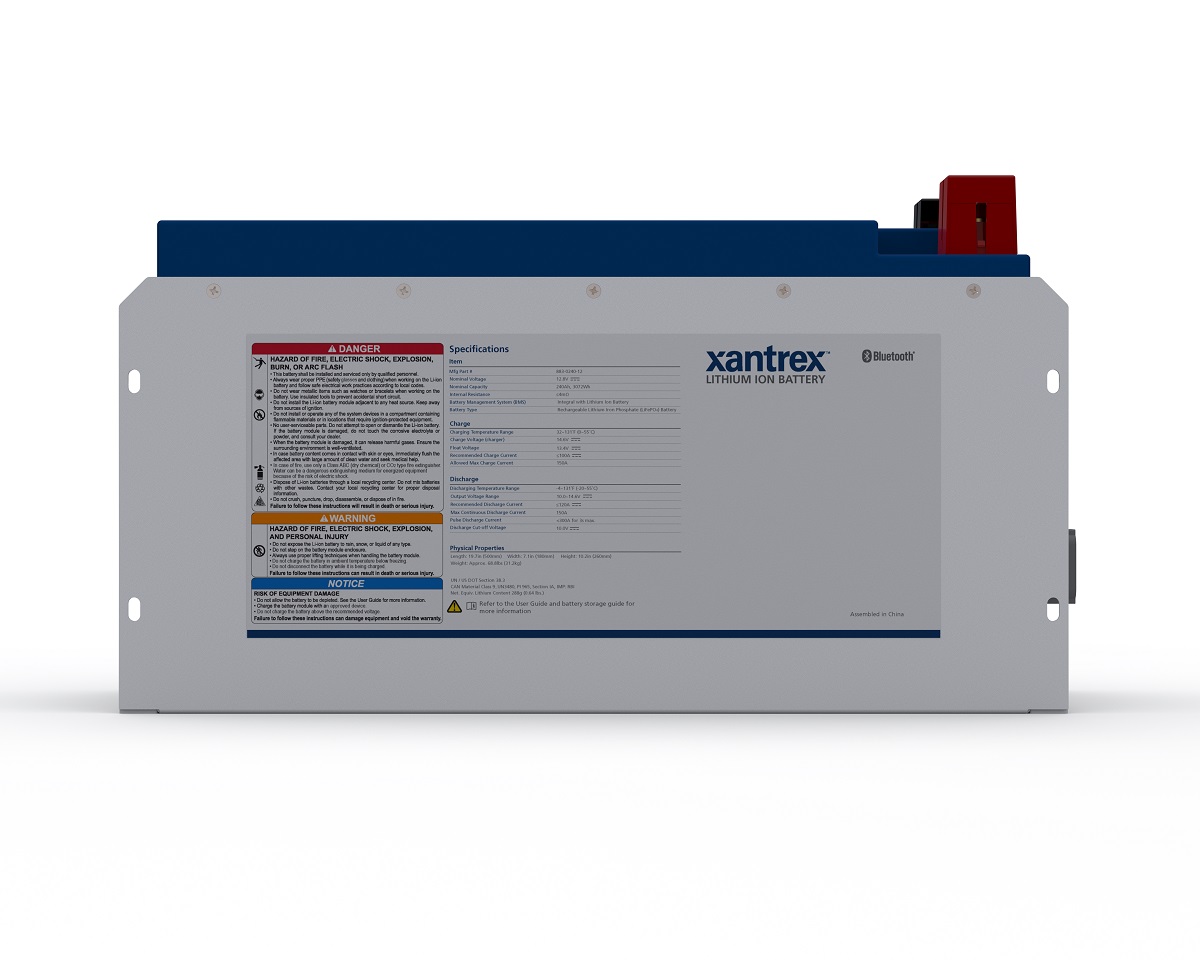

Xantrex Lithium Ion Battery 240AH, 12V Model: 883-0240-12
- Internal BMS - Reduces footprint
- Cell Balancing - extends lifetime of battery
- LED's to Monitor State of Charge
- Optional Remote Panel - view status of battery, turn battery on and off
- Bluetooth - connect to the Xantrex mobile app to view status of battery
- Parallel Stack up to 4 batteries
Xantrex manufactures a variety of lithium ion batteries for mobile applications including marine, RV, truck and specialty vehicles. Many RV manufacturers, boat builders and specialty vehicle manufacturers exclusively use Xantrex batteries and other solutions for their power needs. The Xantrex Lithium Ion Iron Phosphate (LiFePO ) battery uses UL1973 certified cells. Equipped with redundant safety features, the Xantrex lithium battery is the safest in the market today. Specifically designed to withstand the harsh operating environments of mobile and marine applications, the Xantrex lithium battery lasts up to 6,000 cycles compared to a traditional lead acid or AGM battery, which typically lasts 400-500 cycles. The Xantrex lithium battery offers exceptional power density and is also available with a heating blanket option if installation is outside the main cabin. With the Bluetooth connection enabled gathering real time data from the battery is incredibly simple and always accurate. Specifications
| Battery Voltage | 12V | | Nominal True Capacity | 240Ah | | Nominal Voltage | 12.8 Volts | | Nominal Watt Hours | 3072Wh | | Internal Impedence | <4m Ohms | | Charge Voltage | 14.6V | | Recommended Float Charge Voltage | 13.6V | | Recommended Charge Current | ≤100A | | Max Continuous Discharge Current | 150A | | Pulse Discharge Current | 300A (3s) | | Discharge Cut-off Voltage | 10V | | Cycle Life to 80% Health | 2800 (0.5C, 25°C, 100% Depth of Discharge) - increased cycle life with ideal conditions | | ENVIRONMENTAL | | Charging Temperature Range | 32 - 131°F (0 - 55°C) | | Discharging Temperature Range | -4 - 131°F (-20 - 55°C) | | Storage Period 1 Week | -4 - 113°F (-20 - 45°C) | | Storage Period 1 Month | 14 - 113°F (-10 - 45°C) | | Storage Period 6 Months | 50 - 77°F (10 - 25°C) | | MECHANICAL | | Dimensions | 19.7in x 7.1in x 10.3in (500mm x 180mm x 260mm) | | Weight | 69.4lbs (31.5kg) | | Battery Terminals | M8 x 1.25 | | Carrying Capability | Two metal handles | | Moutning Orientation | Standing |
What's in the Box:- Xantex Battery
- Quickstart guide
- 2x Bolt M8 x 1.25cm
- 2x Lock Washer
- 2x captive washer
|
|
Did you Know?
ALL products we sell are factory new and come with the full Manufacturers Warranty! |
|
|
