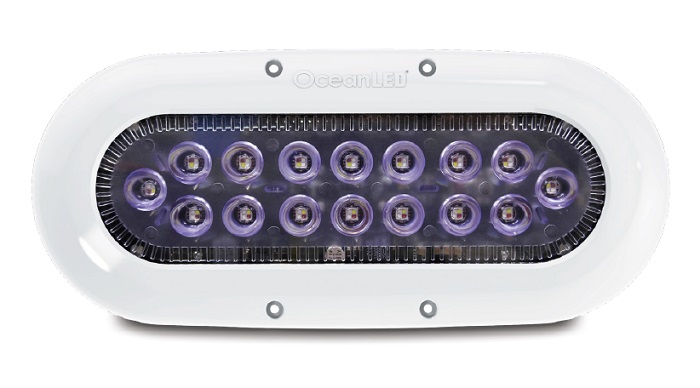

  OceanLED X-Series - X16 - Colour Change LED
Click to enlarge

OceanLED X-Series - X16 - Colour Change LED

Item #: OLE01231C



Quantity:

Minimum advertised price:

$899.00



Free Shipping Available!

Click for your price =>

In Stock - Ships the next business day.
No restocking fees on return.

Click to verify BBB accreditation and to see a BBB report.

Details:

OceanLED X-Series - X16 - Colour Change LED

OceanLED X-Series is a superb underwater LED light range for small and medium sized fishing and cruising boats.

The OceanLED X-Series X16 combines brightness with affordability. Whether cruising or fishing, the X16 gives stunning performance allowing you to enjoy more time on the water with family and friends.

The X16 packs a mighty 4,500 fixture lumens into its low profile design and utilizes focused optics to produce a 60˚ circular beam from each LED providing great water penetration, illuminating a large area.

Choose either a single colour version from either Midnight Blue or Ultra White or pick our Colours option where you can select any colour you want from the RGBW spectrum. You can toggle between the colours or with our DMX controller and smartphone app, your choice is virtually limitless.

Looking to catch more fish? Switch on the Fish-Strobe mode and the light emits a random strobe pattern that is proven to attract extra bait fish and help catch more fish.

  • 5,800 Lumens / 4,500 Fixture Lumens
        Outstanding performance from this small, bright light makes it the obvious choice for those who want to stand out from the crowd.
  • 60? Beam Angle
        A wide-angled, focused beam lights up a large area of the water.
  • Compact and simple design
        Made from a chemically resistant optical polymer with a built in driver, there is a lot packed into this compact light.
  • Simple to install
        Installation needs only a small, 12.5mm hole in the hull to feed the cable through and 4 screws to hold in place. No bonding required.
  • Easy to clean
        Thanks to its Tritonium coating, a simple wipe of the lens removes any underwater growth saving hours of scrubbing each time you use your boat.
  • Fish-Strobe Mode
        Exceptionally bright, randomized strobing of the light is proven to attract more fish and catch more bait.
  • Active Thermal Control
        ATC prevents overheating. In the event of overheating the ATC system will reduce the LED power level in order to protect the LEDs, or in extreme cases, turn off the fixture completely.
  • Colours Control
        Colours models are compatible with OceanDMX for full control, interactivity and colour customisation. Alternatively, cycle smoothly between red, green, blue and white with a standard DC switch.

Specifications

Mounting Recommendations
Boat Size up to 65' (20m)
Transom / Hull Spacing 2-4' (0.5-1.2m)
Transom Quantity 2-6
Installation Depth (to top of fixture) 4-8" (10-20cm)
Technical
Lumens 5800
Fixture Lumens 4500
Typical LED Life Expectancy 40,000+ hours
Minimum-Maximum Operating Voltage DC 9-32V DC
Current / Amp Draw (DC) 12V DC 3.2A
24V DC 1.5A
Approx. Light Penetration (avg. water quality) 40? (12m)
Approx. Light Penetration (perfect water quality) up to 100? (30+m)
Driver Type internal
Physical
Total Weight 860g (1.90lbs)
Extension Cable Length (standard) 97/64? (3m)
Hole Cut-Out for Cable Entry 1/2? (12.5mm)
Material Chemically resistant optical polymer
