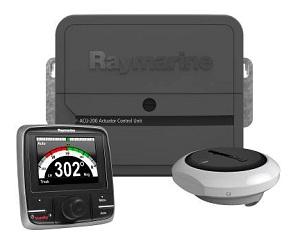

EV1 Sensor Core
The EV-1 is designed for Evolution mechanical and hydraulic autopilot
systems.
SeaTalkng networking enables a single cable connection for power and data to the
Evolution ACU (actuator control unit) and extended SeaTalkng and NMEA2000
networks.
ACU-200
The rugged ACU (Actuator Control Unit) delivers
reliable autopilot drive power and also provides power to the SeaTalkng bus.
p70 Autopilot Control Head (Sail)
The p70 autopilot control head is a push-button
operation controller designed primarily for sailboats. Advanced LED backlighting
offers low power consumption and delivers vibrant colour and contrast. Wide
horizontal and vertical viewing angles ensure the display can be seen clearly
from acute positions.
The p70 control head also features the LightHouse user interface and a start up
wizard to help you configure the pilot quickly and easily.
Evolution Cabling Kit - R70160
The Evolution SeaTalkng cable kit contains:
- 1 x SeaTalkng Power Cable (0.4m)
- 1 x SeaTalkng Backbone Cable (5m)
- 1 x SeaTalkng Spur Cable (0.4m)
- 1 x SeaTalkng 5-way Connector Block
- 2 x SeaTalkng T-piece Connector
- 2 x SeaTalkng Terminator
No calibration required!
Engineered for simplicity, Evolution autopilots eliminate the need for
complicated set up and calibration. Once Evolution is installed, getting started
is as easy as switching the autopilot on.
Thanks to the intelligent EV sensor core, the autopilot automatically evolves
and adapts to your vessel’s steering characteristics without any user
adjustments.
Evolution AI
The culmination of Raymarine’s 30 years of autopilot expertise, FLIR Systems
research and development, and advanced aerospace guidance technology, Evolution
AI™ control algorithms deliver a new level of accurate autopilot control.
This innovative breakthrough in autopilot intelligence enables Evolution
autopilots to perceive their environment and then instantly calculate and evolve
steering commands to maximise performance. The result is precise and confident
course keeping, regardless of vessel speed or sea conditions.
The EV Sensor Core
At the centre of every Evolution system is the intelligent EV sensor core, a
9-axis sensor that monitors vessel motion in all three dimensions. The
innovative EV sensor core combines advanced solid-state sensors with the
Evolution autopilot processor into a single easy-to-install housing.
Mount the EV sensor core above or below decks,
the rugged enclosure is fully sealed and built to IPX6 and IPX7 waterproofing
and submersion standards.
