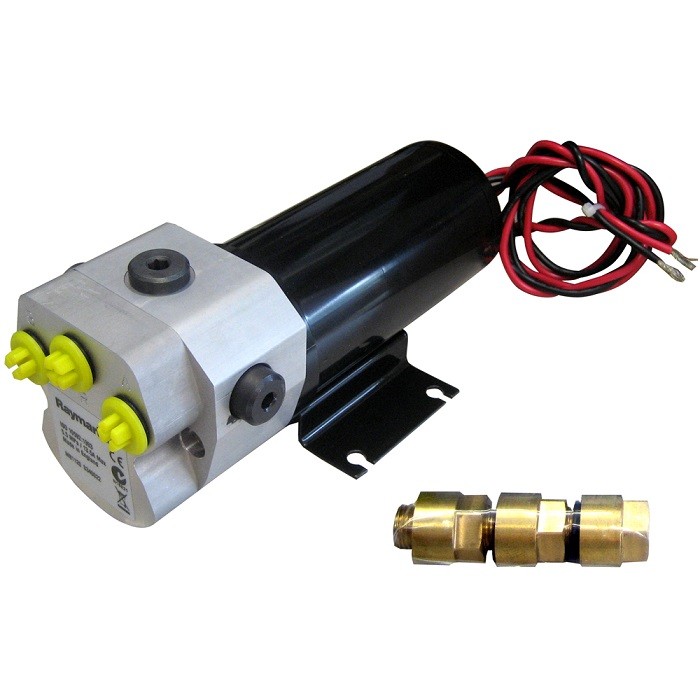

Raymarine Type 1 Pump - Raymarine M81120 - Raymarine Autopilot Drive Units - Raymarine Autopilot Parts - Raymarine Autopilots - Autopilots


        $('#slideshow5').cycle({


          fx: 'fade'
                      ,

            timeout: 4000
                                ,

            pager: '#slideshow_page_info5'


        });

Click to enlarge

Details:

The Type 1 hydraulic drive is compatible with both S1/S1G and S2/S2G corepacks. Use the table below to determine the Type 1 hydraulic drive's capacity when used with each corepack

Type 1 Hydraulic Pump and Corepack Application Table

Corepack Used	S1 or S1G	S2 or S2G
Ram Capacity	4.9in³û 10.5in³	4.9in³û 14in³
	(80cc û 172cc)	(80cc û 230cc)
Maximum Stall Pressure at 12V	750psi (50bar)	750psi (50bar)
Peak Flow Rate (no load)	67in³/min (1000cc/min)	67in³/min (1000cc/min)

Specifications


Drive method	DC Reversing hydraulic pump
Maximum stall	50 bar(750 psi)at 12 V
Peak Flow Rate	1000 cc/min(67 in 3 /min)(no load)
Power	12V Nominal 10 V to 15 V DC input
	Note: reduced voltages will severely degrade drive performance.
Power Consumption	24 Watts
Ram capacity	(min-max)80-230cc(4.9-14 cubic inch)
