Details:

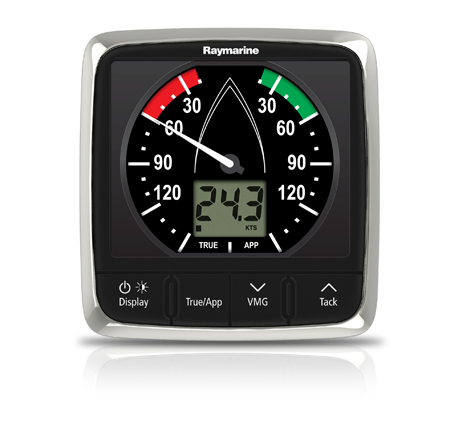

Raymarine i60 Wind Instrument Display

The new i60 instruments are designed to complement the all new Raymarine cSeries and eSeries multifunctional displays. Designed specifically for sailboaters, these stylish, dedicated-function instruments cover wind and close-hauled wind options in analogue and digital formats.

Excellent viewing angles for both day and night conditions and simple, push-button controls make i60 instruments extremely easy to see and use. They are also simple to install thanks to the front-mount design.

Raymarine i60 Wind Instrument Display

Analogue and digital data
Calculates apparent (relative) and true wind speed/angle (true wind requires SeaTalk speed through water data)

Features

Large analogue dials
Red backlighting for improved visibility
SeaTalk and SeaTalk^ng interfaces
NMEA2000 (compatible) interface
Built-in transducer interface
110mm x 115mm footprint identical to older Raymarine ST60+ instrumentation
Large controls for ease of use at sea
Low power consumption
Multiple data source support eliminates potential data conflicts
Front mounted design for simple installation

Nominal Voltage	12V DC
Operating Voltage Range	10 - 16V DC
Power Consumption	typically <1W (display only) and 2.4W maximum with transducer connected
Current Consumption	45 to 65mA (display only) and 200mA maximum with transducer connected
Operating Temperature Range	-20ºC to +55ºC
Storage Temperature	-30ºC to +70ºC
Relative Humidity	up to 93%
Waterproofing Standard	IPX6
Connections	2 x SeaTalk^ng and transducers
Conformance	Europe 2004/108/EC

Did you Know?

ALL products we sell are factory new and come with the full Manufacturers Warranty!

Related Accessories:

Item #	Description	Price	Order
RAYE22078	Raymarine E22078 Mast Head With Cable	$505.43
RAYE22079	Raymarine Long Forward Wind Transducer	$567.99
RAYR28170	Raymarine Masthead F/ST60 Only	$354.77
