The new i50 instruments are designed to complement the
all new Raymarine cSeries and eSeries multifunction
displays. These stylish, dedicated-function instruments are
the perfect solution for smaller power boats, yachts and
rigit inflatables.
Excellent viewing angles for both day and night
conditions and simple, push-button controls make the i50
instruments extremely easy to see and use. They are also
simple to install thanks to the front-mount design.

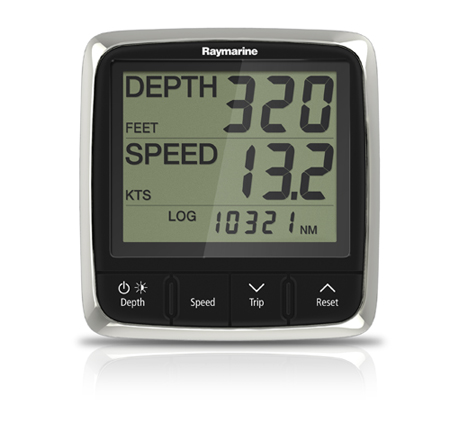

Raymarine i50 Tridata Instrument Display
Combines depth and speed data in an easy-to-read
3-line display.
Dedicated depth and speed displays with
trip/log, sea temperature and SOG.
Key
Features
Large numerals and digits
Red backlighting for improved visibility
SeaTalk and SeaTalkng interfaces
NMEA2000 (compatible) interface
Built-in transducer interface
110mm x 115mm footprint identical to older Raymarine ST60+
instrumentation
Large controls for ease of use at sea
Low power consumption
Multiple data source support eliminates potential data conflicts
Front mounted design for simple installation
Nominal Voltage
12V DC
Operating Voltage
Range
10 - 16V DC
Power Consumption
typically <1W (display only) and 2.4W maximum
with transducer connected
Current Consumption
45 to 65mA (display only) and 200mA maximum with
transducer connected
Operating Temperature range
-20ºC to +55ºC
Storage Temperature
-30ºC to +70ºC
Relative Humidity
up to 93%
Waterproofing standard
IPX6
Connections
2 x SeaTalkng
and transducers
Conformance
Europe
2004/108/EC
