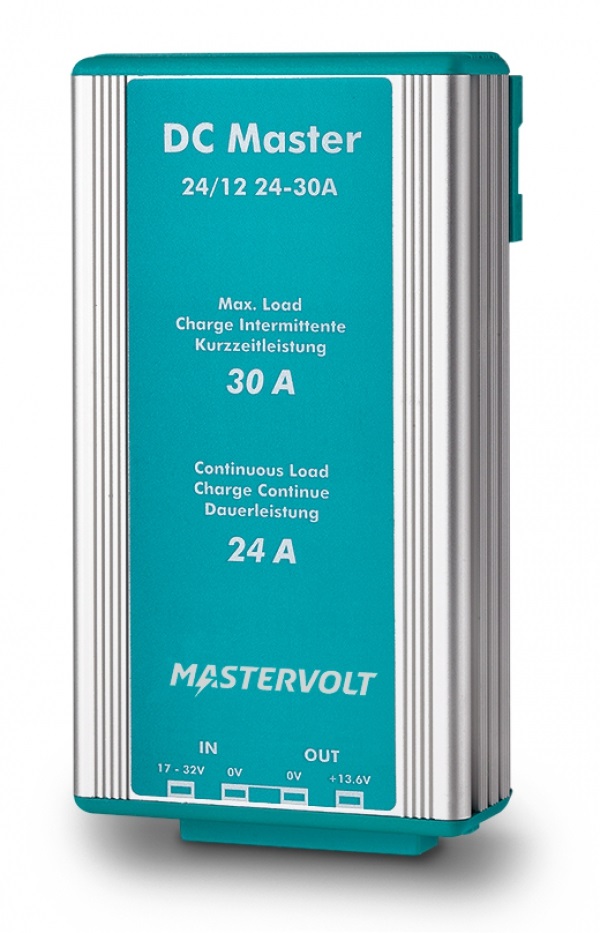

Mastervolt 81400330 DC Master 24/12-24A 24-32VDC To 13.6 Vdc - 24A

Click to enlarge

Details:

Mastervolt DC master 24/12-24A DC-DC Converter, Non-Isolated

Model: 81400330

Recreational and semi-professional use.
Easy to install using included mounting bracket, screws and fasteners.
Smart electronics mean no unnecessary heat generation.
Continuous output.
Two minutes of extra power for short power boosts.

Specifications

General Specifications
Nominal output voltage	13.6 V
Max. output power	408W
Nominal output power	326W
Max. output current (for 2 min. intervals)	30A
Continuous output current	24A
Nominal input voltage	24V
Input voltage range	20-32V
Galvanic isolation	No
Stabilised	Yes
Approvals	CE, E-mark
Technical Specification
DC consumption	< 10 mA
Connections	Fast-on
Temperature range (ambient temp.)	-13 °F to 176 °F
Sound level	< 30 dBA at 1 mtr
Protection degree	IP53
Cooling	Natural cooling
Dimensions	6.6 x 3.4 x 2.0 inch

What's in the Box:

DC Master 24/12-24A Non isolated
Mounting bracket with fastenrs
Documentation
