  Mastervolt 44020120 Chargemaster 12A 24 Volt Output 120/230V Input
Click to enlarge

Mastervolt 44020120 Chargemaster 12A 24 Volt Output 120/230V Input

Item #: MVT44020120



Quantity:

28%

List Price:

$650.79

Price:

$470.99



Flat Rate $10.95 Shipping Available!


In Stock - Ships the next business day.
No restocking fees on return.

Click to verify BBB accreditation and to see a BBB report.

Details:

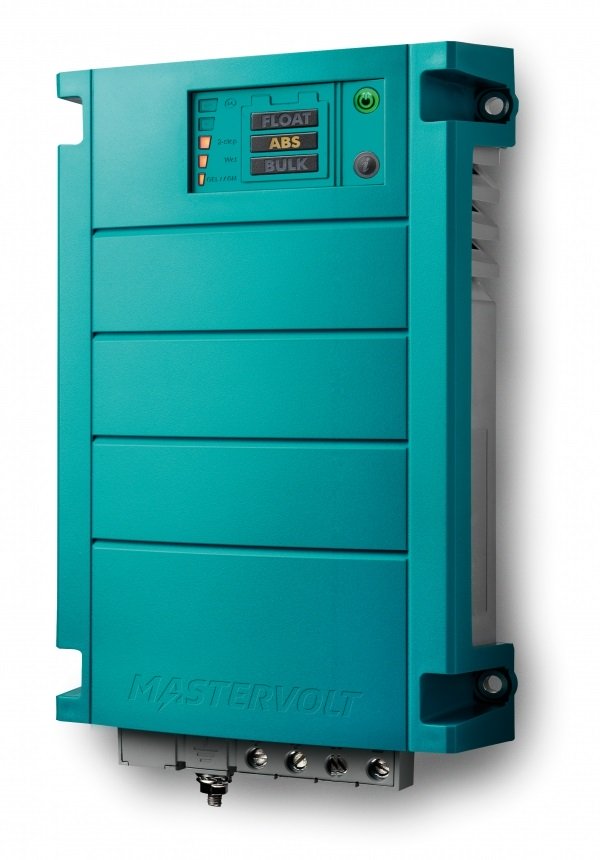

Mastervolt ChargeMaster 24/12-3 Battery Charger

Model: 44020120
  • 3-Step+ charging technology for fast and complete charging.
  • Safe and complete charging due to standard safety features.
  • Memory function prevents overcharging in case of an unstable power supply.
  • Clear control panel.
  • Easy to install
  • Built-in system functionality (MasterBus) in combination with other Mastervolt products

Make the most of your batteries with the ChargeMaster, plugging in and charging anywhere in the world. Mastervolt’s ChargeMaster guarantees fast and complete charging of your batteries no matter where you are. The ChargeMaster can charge multiple battery banks simultaneously thanks to its combined functionality. Moreover, all ChargeMasters can be easily connected to a MasterBus network with only one cable and one connection (not available on ChargeMaster 12/10 and ChargeMaster 12/15-2). You also have the option of central, local or remote monitoring, configuration and control of your system. The ChargeMaster is available in various models to guarantee you the ideal battery charger for any situation and demand.

The Mastervolt ChargeMaster supplies a maximum capacity wherever you are via auto-ranging. Auto-ranging ensures perfect fully automatic operation anywhere in the world, regardless of the available mains voltage (90-265 V AC, 50 or 60 Hz). The 3-step+ charging technology guarantees fast and complete charging, while the cos phi 1 regulation gets the most out of limited generator capacity.

Metal-on-metal fitting gives a firm connection, and prevents corrosion or overheating of contact surfaces.

The ChargeMaster series has three equal charge outputs. Those of the smaller ChargeMaster models are pre-installed with two metres of cable for a plug & play solution, while the heavier models have one full output (for example for your service battery) and two outputs of 10 A, ideal for your starter batteries.

Specifications
General Specifications
Total charge current12A
Number of battery outlets3
Nominal output voltage24V
Charge current second output12A
Charge current third output12A
Battery capacity range24-120aH
Nominal input voltage120/230 V (90-265 V), 50/60 Hz
AC connection2 mtr AC cable
Power supply modeyes
Display/read-outLED display
Technical specifications
Charge characteristicIUoUo, automatic 3-step+ for gel/AGM/wet/Lithium Ion
Charge voltage Bulk28.8V
Charge voltage Absorption28.5V
Absorption time4 hours
Charge voltage Float (wet batteries)26.5V
Charge voltage Float (gel/AGM batteries)27.6V
Voltage compensationAutomatic
Power consumption (DC side)< 2 mA
Full load consumption (230 V AC)435W
Current Control functionNo
Temperature range (ambient temp.)-25 °C to 60 °C, derating > 40 °C
-13 °F to 140 °F
Protection degreeIP23
Coolingvario fan
MasterBus compatibleYes
Dimensions9.2 x 5.2 x 2.4 inch

What's in the Box:
  • ChargeMaster 24/12-3
  • DC-wiring: 2 pcs. positive (red) and 1 pc. negative (black)
  • MasterBus terminating device
  • Documentation
  • Battery temperature sensor
