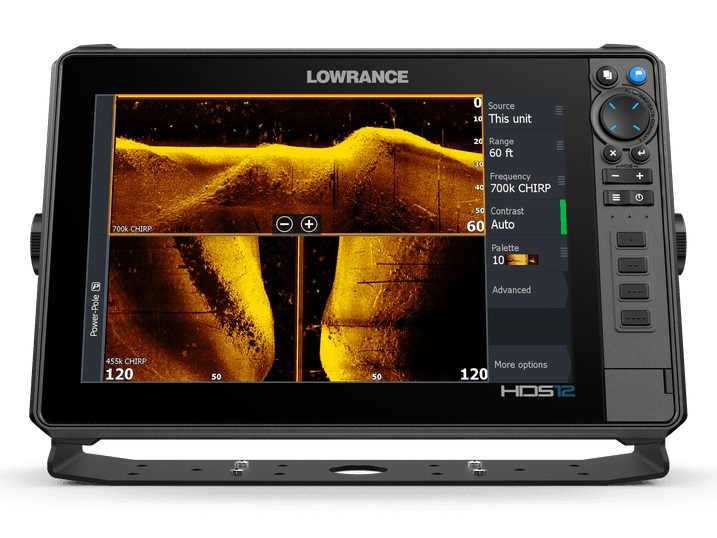

  Lowrance HDS12 Pro 12" MFD C-MAP US & Canada Active Imaging HD 3IN1
Click to enlarge

Lowrance HDS12 Pro 12" MFD C-MAP US & Canada Active Imaging HD 3IN1

Item #: LOW000-15987-001



Quantity:

Price:

$3,449.00



Free Shipping Available!


Usually ships the next business day.
No restocking fees on return.

Click to verify BBB accreditation and to see a BBB report.

Details:

Lowrance HDS12 Pro PRO with C-MAP Discover USA and Canada, ActiveImaging™ HD 3-in-1 Transducer

Model: 000-15987-001
  • SolarMAX™ HD Touchscreen viewable at extreme angles and through polarized lenses
  • New! High-definition 1.2MHz Active Imaging™ HD ready (Lowrance CHIRP/SideScan/DownScan Imaging™)
  • New! High-resolution ActiveTarget® 2 Live Sonar ready
  • Supports two ActiveTarget Systems for multiple views simultaneously
  • Supports FishReveal™ with new SideScan view, as well as Downscan*
  • Preloaded C-MAP® DISCOVER OnBoard charts with 1-foot contours on 19,000+ US Lakes, 9,400+ Canadian Lakes or worldwide basemap (AMER ONLY)
  • Real-time mapping available with C-MAP® Genesis Live.
  • Support for new ActiveTarget® Scout and Ghost® Trolling Motor 360 chart overlay views
  • Large programmable keys
  • Touchscreen control of Power-Pole® anchors, Ghost® Trolling Motor, Autopilot and Lowrance Outboard Pilot
  • NMEA 2000®, Wireless and Bluetooth®, connectivity — plus smartphone notifications
  • Wide range of optional chart upgrades including C-MAP® REVEAL, Navionics®, Florida Marine Tracks and more.

See more and catch more with the new HDS® Pro, giving you the clearest and most-detailed views with new, higher-resolution ActiveTarget® 2 Live Sonar and new, ultra high-definition Active Imaging™ HD. Our clearest sonar ever, Active Imaging™ HD delivers high-definition views of Lowrance CHIRP sonar, SideScan and DownScan Imaging™. FishReveal™ has also been expanded to be available on SideScan* and DownScan, making fish easier to identify to the sides and beneath the boat. (*Requires S3100 Module) ActiveTarget® 2 Live Sonar provides higher-resolution views of fish movement and structure. It also supports plug-and-play installation of two ActiveTarget® systems, making it possible to watch multiple views simultaneously, and to widen Front and Scout modes for better bait tracking.

The better your view, the better your fishing. From the high-definition touchscreen display to the high-level clarity of the newly-enhanced Lowrance sonar, HDS® Pro delivers a full range of meaningful underwater views that will take your fishing experience from good to great. The SolarMAX™ HD touchscreen provides stunning images of fish, structure and chart details that are easy to see from any angle, in direct sunlight and through polarized lenses — a real difference maker on the water. See unmatched clarity on-screen with Lowrance’s superior, high-resolution Active Imaging™ HD sonar and ActiveTarget® 2 Live Sonar technologies.

Spend more time catching fish and less time finding them with pre-loaded C-MAP® charts. Get full-featured vector charts, custom depth shading, high-res coastal coverage and 1-foot contours on more than 19,000 lakes across the U.S. and more than 9,400 in Canada. HDS® Pro also introduces a new chart overlay option, allowing you to view ActiveTarget® Scout Mode or Ghost® 360 trolling motor mode directly on the chart screen. For anglers that want to select their own chart, HDS® PRO supports a wide range of third-party chart options, including C-MAP®, Navionics®, Florida Marine Tracks and more.

HDS® PRO gives you full bow-to-stern networking and expanded control of the Ultimate Fishing System, including new Ghost® Trolling Motor features like Ghost 360, Orbit Waypoint and Anchor at a Distance. With HDS® Pro at the heart of your fishing system, it’s easy to customize your boat to fit the way you fish with your choice of fish-finding, navigation, network and entertainment options. HDS® PRO offers support for the complete range of top fish-finding technologies — from ActiveTarget® 2 Live Sonar and Active Imaging™ HD to touchscreen control of Power-Pole® Anchors, Ghost® Trolling Motor and more. Expand your system -- taking advantage of radar, autopilot and NMEA 2000® compatibility -- and add SiriusXM® Weather/Audio to monitor changing weather conditions and to listen to your favorite tunes.

The expanded options and capabilities of HDS® Pro give you more ways to customize your boat to better fit your fishing needs. Beyond the 9, 10, 12 and 16-inch screen sizes, HDS® Pro can also be expanded to deliver additional views and features. Simply add an S3100 sonar module and Active Imaging™ Transducer to enable the new FishReveal™ SideScan view, making it easier to identify fish to the sides of the boat. Anglers can also add a second ActiveTarget® system to better target fish by viewing multiple ActiveTarget 2 live sonar displays at the same time. With plug-and-play installation, expanding your fishing has never been easier.

Specifications
Display
Backlight ColorPure White LED
Display Resolution1280 x 800
Screen Brightness>1200 Nits
Viewing Angles80° top/bottom, 80° left/right
Electrical
Power Consumption max3.6A @ 13VDC with Full Backlight, Sonar on
Power Consumption min2.3A @ 13VDC with Full Backlight, Sonar on
Power Consumption typical2.3A @ 13VDC with Full Backlight, Sonar on
Recommended Fuse Rating5A
Supply Voltage12 v DC (10.8-17 V DC)
Physical
DimensionsW x H x D 13.68in (347.5mm) x 9.00in (228.5mm) x 3.26in (82.9mm)
Weight6.5lb (2.95kg)
Compass Safe1.6 ft (50 cm)
Mounting TypePanel mount or bracket mount
Environment
Humidity60°C, 95% relative humidity (RH) for 18 hours
Operating Temperature Range5°F to 131°F (-15°C to 55°C )
Shock Vibration100,000 cycles of 20 G
Storage Temperature Range4°F to 140°F (-20°C to 60°C )
Waterproof ratingIPX7 with card door closed
Interface
TouchscreenFull Multi-touch touchscreen
Keypad8-way directional keypad
User programable keys4
ButtonsZoom +/-, Exit, Enter, Menu, Waypoint, Power / Light
Connectivity
Bluetooth®Bluetooth® 5.2 with support for Bluetooth® classic
Ethernet Ports2 x 100 Mbit, 6 max MFD's on a network
Connectivity Wi FiInternal 802.11b/g/n and Compatible with WiFi-1 Module
NMEA 20001x Micro-C
SD Card Storagevia Power cable
Video
OutputNone
Composite video1 xRCA - single channel via an optional adaptor cable
HDMI1 port for external input (HDMI® 1.4 sink and HDCP)
GPS
CorrectionDGPS, WAAS
GPS Receiver Channels16
Position Accuracy20m RMS
Time to First Fix30s
Update rate10 Hz
MFD
Sonar CompatibilityIntegrated: Dual channel CHIRP Broadband, ActiveTarget (2), ActiveImaging (HD) DownScan, ActiveImaging (HD) SideScan. Compatible with: S3100, StructureScan, StructureScan3D, S5100, SonarHub
RadarAll HALO Radars
WeatherSiriusXM via WM-4 (USA only)
AISAIS Chart and Radar overlay. Target vessel details.
AutopilotNAC-1, NAC-2, NAC3, Outboard Pilot, MotorGuide Xi5/Xi3 Trolling Motor **requires Motorguide PinPoint Gateway
Digital SwitchingCZone, Naviop, DDS
GPS10 Hz GPS/GLONASS WAAS/EGNOS/MSAS
Internal Storage8.0 GB Internal
MultimediaSonicHub, SonicHub 2, FusionLink products, any NMEA 2000 compliant Marine Audio products
Sonar Output Power1kW
Waypoints, Routes, Tracks3000 Waypoints, 100 Routes, 100 Trails with up to 10,000 points per trail
HTML5Support for third part HTML apps
Autopilot Maneuvers Turn PatternsCourse, Heading, Waypoint, Power Steer, U-Turn, C-Turn, Spiral, Zigzag, Square, Lazy-S
Steering ModesCourse, Heading, Waypoint, Power Steer

What's in the Box:
  • HDS12 Pro Display
  • Lowrance Power/0183 Cable
  • HDS-12 LIVE/PRO Bracket and Knobs
  • HDS-12 LIVE/PRO Suncover
  • DISCOVER - NORTH AMERICA
  • ActiveImaging™ HD 3-in-1 Transducer
