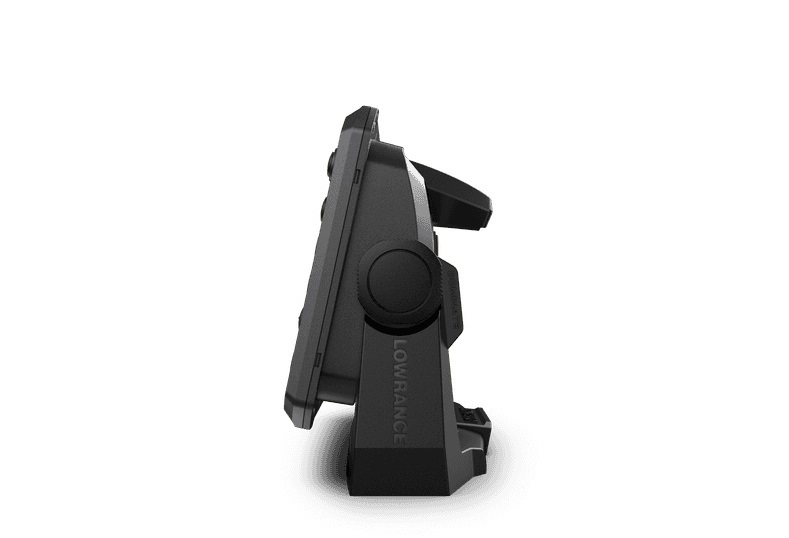

Lowrance Elite FS 7 Display with C-Map Contour+ and Active Imaging 3 in 1 Transdcuer Model: 000-15688-001
- ActiveTarget™ Live Sonar ready
- FishReveal™
- Preloaded C-MAP Contour+ with 1-foot contours on 8,900 lakes, plus mapping options including C-MAP, Navionics® and more
- C-MAP® Easy Routing, Navionics® Autorouting capability
- C-MAP Genesis Live onscreen mapping
- High-resolution multi-touch touchscreen
- Integrated wireless, NMEA 2000® and Ethernet connectivity
- Full touchscreen control of Power Pole® anchors and Ghost® Trolling Motor
The Elite Fishing System (FS) combines the power of Lowrance’s proven and newest fishfinding tools with a more affordable display that’s easier to use and install. From ActiveTarget™ Live Sonar and extreme high-resolution Active Imaging™ with Lowrance CHIRP sonar, SideScan and DownScan Imaging™ to preloaded C-MAP® Contour+ Fishing Maps, Elite FS gives you all the tools you need to find and catch more fish. See structure and cover with a new level of refined detail and at a range unmatched by any other structure imaging technology with Active Imaging™ 3-in-1 sonar featuring CHIRP, SideScan and DownScan with FishReveal™. Get the best of CHIRP sonar and DownScan Imaging™ on one screen with FishReveal, a Lowrance exclusive that helps you easily recognize fish from structure and cover on high-detailed DownScan images. Fish smarter when you know exactly what fish are doing — in real time — with ActiveTarget™ Live Sonar. Enjoy high-resolution views of fish movements, tracking them as they swim in and around cover. Watch their real-time response to your lure and you will know if your current technique is working or if it’s time to switch things up. Spend more time trying to catch fish and less time trying to find them with the high-resolution detail of C-MAP® Contour+ inland and coastal charts built into Elite FS displays. From finding key fishing areas, like ledges, drop-offs and ditches to navigating with precision to fish-holding areas, you will have more success on the water with high-resolution 1-foot contours on 8,900 U.S. lakes. Specifications
| Environmental | | Operating temperature range | -15°C to +55°C (5°F to 131°F) | | Storage temperature | -20°C to +60°C (4°F to 140°F) | | Waterproof rating | IPX6 and IPX7 | | Electrical | | Supply voltage | 12 V DC (10 - 17 V DC min - max) | | Recommended fuse rating | 3 A | | Power consumption (maximum) | 28 W (2 A at 13.8 V DC) | | Display | | Resolution | 800 x 480 pixels | | Viewing angles in degrees | 50° top, 60° bottom, 70° left and right | | Brightness | > 1200 nits | | Touch screen | Multitouch | | Physical | | Weight (display only) | 0.9 kg (1.9 lbs.) | | Compass Safe Distance | 0.5 m (1.6 ft.) | | Interface/Connectivity | | NMEA 2000® | 1 port (Micro-C connector) | | Data card reader | 1x slot (microSD, SDXC) | | Ethernet | 1 port, (5-pin Ethernet connector, 100Base-T) | | Sonar | 1 port (9-pin connector) | | WiFI Internal | 802.11b/g/n : No wireless networking between units | | Bluetooth® | 4.0 with support for Bluetooth® Classic | | GPS | 10Hz high speed update WAAS, MSAS, EGNOS, GLONASS |
What's in the Box:- Elite FS 7 Display
- Suncover
- Mounting bracket and knobs
- Power cable
- Fuse and Fuse holder
- Active Imaging 3-IN-1 Transducer
|
