Details: |
|

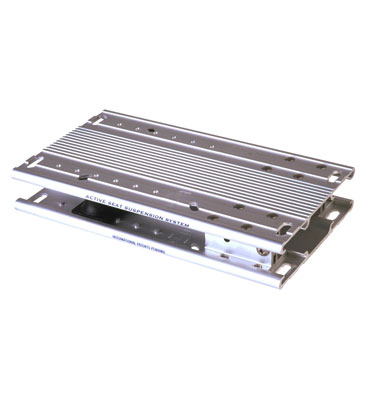

Active Seat Suspension Systems absorb and minimize up to 75% of the
shock, jolt, and vibration transmitted to the passenger from the forces of
roll, pitch, and yaw.
Active Seat Suspensions Systems reduce the feelings of seasickness and
nausea by absorbing excessive movement with 1" of damped vertical travel.
These systems are CAD designed, FEA proven, and precision engineered and
tooled.
Components are saltwater spray 77000ed and UV stable; to help endure
harsh marine environments.
Made from rugged, high-tensile, anodized aluminum with stainless steel
hardware.
Standard bolt hole pattern allows for mounting on top of pedestal and
beneath any individual seat
Features heavy duty forward hinge system allowing shock absorption to
occur in the vertical plane only, eliminates sway and side tipping
U.S. PATENT #6,042,093
Includes provisions for mounting seats with 6" center hole pattern.
Easily mounts to almost any current seat.
Standard bolt hole pattern allows for easy mounting beneath seat to the
deck, a box, or the floor of a boat
Perfect for mounting beneath seat greater than 20" (51cm)
Includes provisions for mounting seats with 6" center hole pattern
77000 : Compact size and low profile design adds only 2" (5cm) of
height. The outline is 13" x 7" (33 x 18cm) with standard 5" x 12 1/8" (13 x
31cm) slotted mounting hole pattern.
|
|
