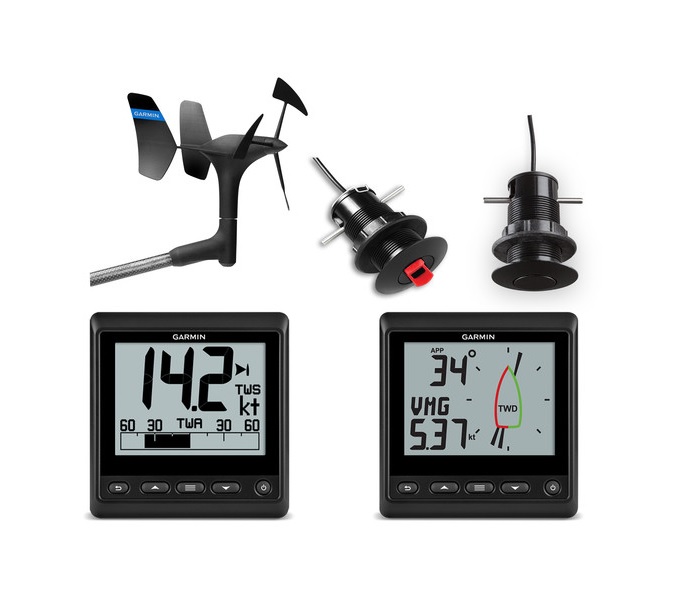

Garmin GNX™ Wind Wired Sail Pack 43 Model: 010-01248-60
- Includes GNX™ Wind and GNX 20 marine instruments, gWind™ Wired transducer plus GDT™ 43 and GST™ 43 transducers with 43 mm fittings and adapters for NMEA 2000® network sharing
- GNX Wind and GNX 20 instruments have highly visible glass-bonded monochrome LCD displays
- gWind transducer features twin-fin technology for True Wind Angle (TWA); 3-bladed propeller provides accurate wind speed in lighter air
- Accurate water depth, water speed, water temperature data and more
- Easy plug-and-play installation with NMEA 2000 network
Know the Wind and Water
With a GNX Wind Wired Sail Pack, you will have all the equipment you need to know what’s going on with the wind and the water. GNX Wind Marine Instrument
GNX Wind gives you the wind data necessary to make confident decisions. Features high-visibility, glass-bonded backlit monochrome LCD display with customizable backlight colors. It also interfaces through the NMEA 2000 network to show 2 data fields and a digital wind rose simultaneously to display true and apparent wind data, steering guidance, boat speed and more. Low power consumption of 350 mW daylight (no backlight) and 400 mW nighttime (mid-level backlight) is perfect for sailboats. Fully customizable user profiles allow you to configure the screen layout to your preferred setting. Display configurations include more than 15 important marine parameters for wind, speed and navigation. It can even wirelessly connect to a quatix® 3 GPS marine smartwatch via ANT technology to stream wind data directly to your wrist. gWind Wired Transducer
gWind transducer features twin-fin technology with 3-bladed propeller for more accurate True Wind Speed (TWS) in lighter air while the twin-fin design gives a more stable True Wind Angle (TWA). The 3-bladed propeller, unlike a cups design, is always efficient. Combined with optic reading, this transducer provides superior accuracy at low wind speeds and also provides for excellent linearity. GNX 20 Marine Instrument
The easy-to-read GNX 20 marine instrument display with black digits on a white or color background clearly shows water depth, boat speed through the water, water temperature and 50-plus marine and boat parameters. Its glass-bonded display with anti-glare lens coating provides excellent daytime and nighttime readability with high-contrast digits scalable up to 36 mm. GDT 43 and GST 43 Transducers with 43 mm Fittings,br> If you already have 43 mm fittings for your thru-hull transducers, there’s no need to drill new holes. The bundle includes 43 mm thru-hull transducers, which can retrofit boats with existing Nexus® or Silva TH43 transducers. GST 43 is a speed and temperature transducer, and GDT 43 is a depth transducer. Addition of an NMEA 2000 adapter allows each GDT 43 transducer to share its data over the NMEA 2000 network to a compatible Garmin chartplotter or instrument display. Specifications
| Waterproof | Yes (IPX6 ) | | Temperature range | From 5°F to 158°F (-15°C to 70°C | | Storage Temperature | From -4°F to 176°F (-20°C to 80°C) | | Voltage | 9-16V | | Accuracy angle | Better than ±1.5° | | Speed | Better than ±3% | | Wind speed range | 0. 8-90 knots (0. 4-50 m/s) | | NMEA2000 load equivalncy number | 3 | | Wireless connectivity | (ANT only for GNX Wind) | | Input Voltage | Cable length | | Input Draw | 25 m (Wind transducer cable) | | Dimensions | WxH: 13.6in x 24in (345 mm x 610 mm) |
What's in the Box:- gWind Wired transducer
- GMI™ 20
- GND 10
- NiMH battery
- NMEA 2000 drop cable (2 m)
- NMEA 2000 T-connector
- NMEA 2000 T-connector
- Mast bracket
- Mounting hardware
- GDT™ 43 with NMEA 2000® adapter
- GST™ 43 with GST 10
- Documentation
|
