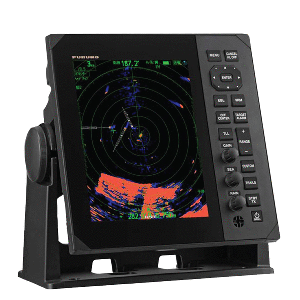

The FR-10 10.4" Color LCD Radars are Marine Radar displays consisting of a dedicated vertical display unit that can be freely combined with Furuno’s extensive DRS Series Antennas to meet a wide variety of detection needs. These Radars feature the latest technologies including Risk Visualizer™, a new function that provides visual information on potential collision areas and movement of all surrounding vessels, as well as Echo Average, Target Analyzer™, Fast Target Tracking™, RezBoost™, and many other great functions to help you keep track of any target for your navigation and operations such as Custom AIS, User-Programmable function keys and Multi-language support.
Compatible with Furuno’s powerful antenna line-up
The FR-10 is compatible with any of the DRS Series Antennas, allowing for a variety of configurations. By selecting the detection range (power output), screen size, and antenna type and size based on what you want to accomplish, you can build the Radar that best meets your needs.
Compatible DRS antennas:
Radome type:
Model DRS2D-NXT
Model DRS4D-NXT
Model DRS4DL+
Open Array type:
Model DRS6A-NXT
Model DRS12A-NXT
Model DRS25A-NXT
Model DRS6A X-Class
Model DRS12A X-Class
Model DRS25A X-Class
Risk Visualizer™
Risk Visualizer™ is a technology that shows potential collision areas based on the current position and movement of all surrounding vessels. Thanks to the on-screen display, it is easy to get a quick and intuitive overview of the situation around your ship. Additionally, color-coded alerts according to the threat of a collision, from green (normal) to red (hazardous), will help you assess the level of danger and plan your next move. This is our first commercial mid-range Radar to incorporate this feature, which contributes to the continuous improvement of safety at sea.
Fast Target Tracking™
Fast Target Tracking™ is a technology that instantaneously displays a vector indicating the speed and heading of the target. The targets are automatically tracked from the beginning, making it possible to immediately calculate the target's trajectory and display the velocity vector.
Target Analyzer™
Target Analyzer™ is a technology that analyzes targets and identifies the dangerous ones that are likely to collide with your ship, using different colors according to the degree of danger. The display of potentially dangerous targets in different colors allows an operator to understand threats to safe navigation at a glance.
Echo Average
Echo Average is a feature that attenuates irregular echoes, such as reflections from the sea surface and precipitation, and stabilizes echoes from fishing gear and other vessels. It makes it easier to see what you want to see, even in poor weather conditions such as high waves, precipitation, or dense fog.
Specifications:
Peak Output Power: Depending on the selected Antenna Unit (See DRS Antennas)
Range Scales: 0.0625 to 36 NM (DRS4DL+), 0.0625 to 48 NM (DRS2D/4D-NXT), 0.0625 to 72 NM (DRS6A-NXT), 0.0625 to 96 NM (DRS6A/12A/25A X-Class, DRS12A/25A-NXT)
