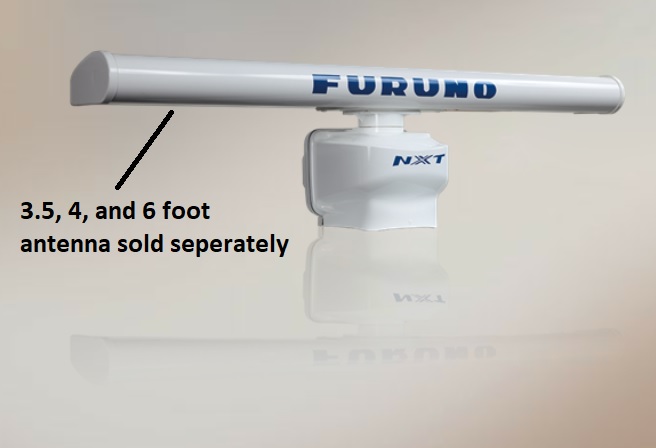

Furuno DRS6A-NXT Solid-State Doppler Radar
| Antenna size |
3.5 ft or 4 ft or 6 ft |
| Band |
X-Band |
| Power usage |
12-24 VDC |
| Range |
72 nm |
| Antenna type |
Open Array |
| Beam width |
2.3 degrees or 1.9 degrees or 1.4
degrees |
| Power output |
25 W |
The NXT
step with doppler Radar technology
The Furuno NXT Radar is the next step in Radar evolution; a Solid-State
Radar with pulse compression, Target Analyzer and Fast Target Tracking utilizing
Doppler technology. Combined with FURUNO exclusive RezBoost technology for beam
sharpening, NXT packs the performance of a larger Radar in a more compact
package.
Target Analyzer function
utilizing Doppler technology
NXT is the first radar in the world to use the new Furuno exclusive
Target Analyzer function, where targets that are approaching your vessel
automatically change color. Green targets are targets that stay stationary, or
are moving away from you, while red targets are moving towards your vessel.
Target Analyzer works independent of vessel speed, both your own vessels and
target vessels, with minor limitations. Echoes dynamically change colors as
targets approach, or get farther away from your vessel. Target Analyzer can
increase safety, as well as improve situational awareness.
Fast Target
Tracking
Once a target has been selected, a speed and course vector is displayed in
seconds. With accurate tracking information, estimation of other vessel's course
and speed is greatly simplified. With Doppler technology, any vessel approaching
yours will automatically display a target vector, as well as sound an alarm.
RezBoost Beam
Sharpening
For the first time Furuno's exclusive RezBoost technology is used in one
of our Radar units, with impressive performance. With RezBoost set to MAX, the
sharpness of a 2 degree beam width can be achieved.
Packing List
- RSB137-119 Scanner Unit (x1)
- 000-192-660-10 Fuse ATV10A60V (x1)
- 000-193-631-10 Fuse ATV15A60V (x1)
- 100-403-040-10 Corrosion-proof rubber
mat (x4)
- 000-167-491-10 Hex Nut M12 (x8)
- 000-167-397-10 Spring Washer M12 (x4)
- 000-167-417-10 Flat Washer M12 (x4)
- 000-191-051-10 Hex Stud M12x70 (x4)
- IME-366-80Z Installation Manual (x1)
- C32-007-03Z Mounting Template (x1)
- MDC-366-80Z Environmental Data Sheet
(x1)
- 000-033-452-00 Signal/Power Cable
Assy 10M (x1)
|
