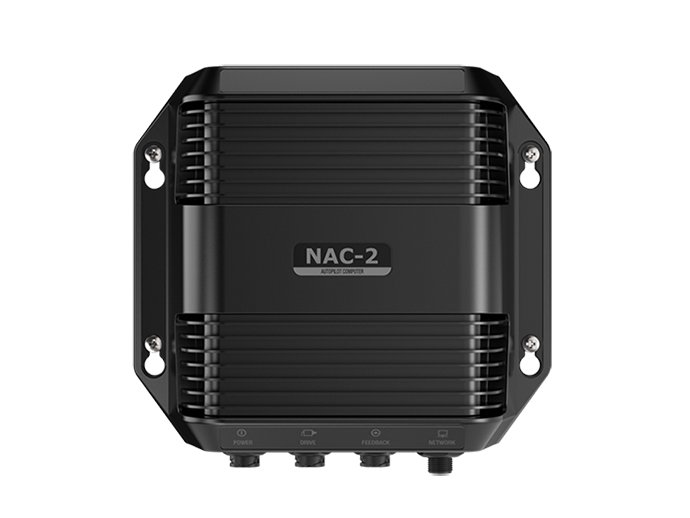

  Simrad NAC-2 Low Current Autopilot Computer
Click to enlarge

Simrad NAC-2 Low Current Autopilot Computer

Item #: SIM000-13249-001



Quantity:

Price:

$849.00



Free Shipping Available!


Usually ships the next business day.
No restocking fees on return.

Click to verify BBB accreditation and to see a BBB report.

Details:

NAC-2 Autopilot Computer

The NAC-2 Autopilot Computer is the brains behind your Simrad autopilot system. It contains the electronics needed to operate a hydraulic steering pump or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units. The NAC-2 was designed for boats up to ten metres (35 feet) in length and is suitable for low-current pumps, mechanical drive units, or solenoid valves (eight amps continuous/16 amps peak).

Key Features

  • Reliable autopilot performance based on Simrad Continuum steering technology
  • Recommended for boats up to 10 metres (35 feet) in length
  • Output of 8 amps continuous, 16 amps peak
  • Clutch output (3 amps maximum)
  • Compatible with low -current drive pumps, mechanical drives, hydraulic linear drives, and solenoid valves
  • Virtual rudder feedback for simplified installation aboard outboard and sterndrive (inboard/outboard) boats
  • Supports Simrad RF25 rudder feedback units
  • Plug-and-play connectors for easy installation
  • NMEA 2000? connectivity to heading sensors, rudder feedbacks, dedicated autopilot controllers, and multifunction displays

Simrad Continuum steering technology

Every Simrad steering innovation builds upon a legacy encompassing over sixty years of autopilot development, which continues today at Simrad Yachting?s autopilot research hub in Norway. This legacy is exemplified by the Continuum algorithm: the software that drives Simrad steering technology. Continuum brings all those years of research and on-water experience to your helm, for a smart pilot you can trust to take the wheel.

Standard Output

The NAC-2 Autopilot Computer is recommended for boats up to 10 metres (35 feet) in length. It delivers standard power output of up to eight amps continuous and 16 amps peak, plus a clutch output; this is suitable to operate low-current drive pumps including the Simrad RPU80, mechanical drives such as the Simrad SD10, hydraulic linear drives such as the HLD350, and solenoid valves.

Virtual Rudder Feedback

Simrad Virtual Rudder Feedback (VRF) technology eliminates the need to install a separate rudder feedback unit aboard outboard and sterndrive (inboard/outboard) boats. This reduces overall autopilot system cost and complexity, and is ideal where a feedback unit is impractical due to mechanical constraints.

Rudder Feedback Units

Rudder feedback units are sensors that connect to your rudder via a mechanical linkage and continuously report actual rudder position to your autopilot computer ? allowing the Simrad Continuum steering algorithm to make the best-informed steering decisions possible. These sensors are typically used on boats with inboard engines, on larger vessels, and in special applications where Virtual Rudder Feedback may not be suitable. The NAC-2 supports SimNet or NMEA 2000? connected Simrad RF25 feedback units, and resistive rudder feedback sensors.

Easy Installation

Plug-and-play connectors facilitate easy installation, minimising the wiring necessary to install your autopilot system. Industry-standard NMEA 2000? networking offers simple connectivity to heading sensors, rudder feedback units, autopilot controllers, and multifunction displays located anywhere on board.

Specifications

Operating Temperature -25?C to 55?C / -13?F to 131?F
Operating Temperature Stored -32?C to 70?C / -25.6?F to 158?F
Water Resistance IPX5
Product Width 204 mm / 8.03 in
Product Depth 57 mm / 2.24 in
Product Height 207 mm / 8.15 in
Product Weight 0.6 kg / 1.3 lb
Power Consumption 140 mA @ 12 V (1.7 W) + drive unit load
Power Supply (Supply Voltage) 9-31.2 V DC
Virtual Rudder Feedback Yes
