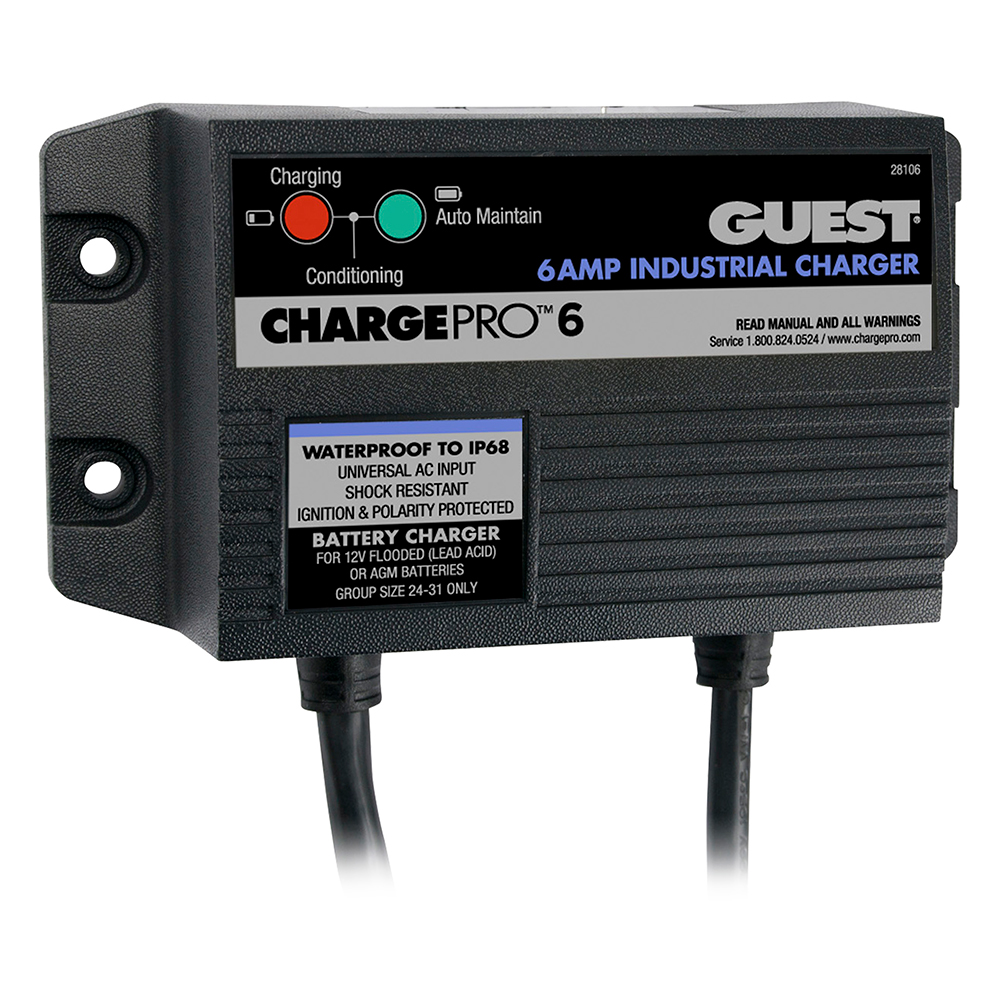

Charger 6A / 124 1 Bank 120V Input Marinco On-Board Battery 28106 ChargePro onboard chargers have the same housing and mounting dimensions as the traditional Charge Pro Guest chargers with a number of performance enhancements. - Charge flooded, AGM or Gel batteries
- Microprocessor controlled for accurate charging
- Intuitive operation
- Sense-Send™ technology senses the power needs of each battery and sends correct charge
- Isolated outputs
- Outputs can be put in series or parallel for higher voltage or current
- Completely sealed, epoxy filled
- IP68 waterproof
- Designed for harsh marine and industrial environments ? moisture, salt, shock and vibration tested
- Non corroding housing for ultimate reliability
- Meet global industry standards including UL, CE, CSA, ABYC, California efficiency regulations (CEC)
- Footprint same as former Charge Pro Guest Chargers
- ConnectCharge Plug for easy assembly to inlet (Item #150CCI optional) with no wiring
Specifications Model 28106
Input voltage: | 115 V 50/60 Hz AC |
Input Amps (Max) | 2.0 Amps |
Input Voltage Range | 90-265A AC 50/60Hz |
Banks | 1 |
Output Volts | 12V DC |
Absorption Charge voltage (per bank) | 14.3 V +/- 0.20 V |
Float Charge Voltage (per bank) | 13.3 V +/- 0.20 V |
Charging current | 6 amp |
Rechargeable battery type | Any 12 V lead acid batteries (Flooded and AGM) |
Battery Charge capacity (based on 50% drained battery) | Group 24 through 31 (up to 120 Amp-Hours) |
AC Cable Length | 6 Ft (1.8M) |
DC Cable Length | 4 Ft (1.2M) |
Protection type | IP68 (casing) |
Dimensions | 3.5" L x 6.4" W x 2.3" 89mm L x 198mm W x 58mm D |
|
|
