Details: |

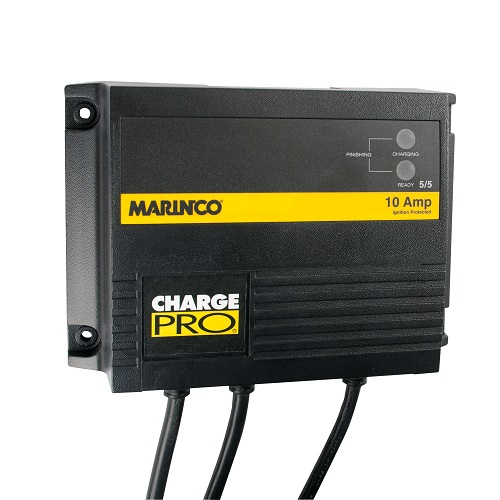

Charger 10A / 12/24v 2 Bank 120V Input Marinco On-Board Battery 28210 ChargePro onboard chargers have the same housing and mounting dimensions as the traditional Charge Pro Guest chargers with a number of performance enhancements. - Charge flooded, AGM or Gel batteries
- Microprocessor controlled for accurate charging
- Intuitive operation
- Sense-Send™ technology senses the power needs of each battery and sends correct charge
- Isolated outputs
- Outputs can be put in series or parallel for higher voltage or current
- Completely sealed, epoxy filled
- IP68 waterproof
- Designed for harsh marine and industrial environments ? moisture, salt, shock and vibration tested
- Non corroding housing for ultimate reliability
- Meet global industry standards including UL, CE, CSA, ABYC, California efficiency regulations (CEC)
- Footprint same as former Charge Pro Guest Chargers
- ConnectCharge Plug for easy assembly to inlet (Item #150CCI optional) with no wiring
Specifications Model 28210 Input voltage: | 115 V 50/60 Hz AC | Input Amps (Max) | 2.5 Amps | Input Voltage Range | 90-265A AC 50/60Hz | Banks | 2 | Output Volts | 12/24V DC | Absorption Charge voltage (per bank) | 14.3 V +/- 0.20 V | Float Charge Voltage (per bank) | 13.3 V +/- 0.20 V | Charging current | 10 amp | Rechargeable battery type | Any 12 V lead acid batteries (Flooded and AGM) | Battery Charge capacity (based on 50% drained battery) | Group 24 through 31 (up to 120 Amp-Hours) | AC Cable Length | 6 Ft (1.8M) | DC Cable Length | 4 Ft (1.2M) | Protection type | IP68 (casing) | Dimensions | 5.5" L x 7.8" W x 2.4" 89mm L x 198mm W x 58mm D | Weight | 5.6 pounds (2.5kg) | |
|
|
