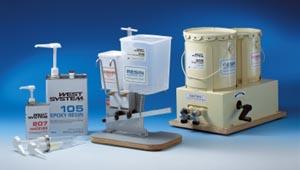

West System Mini Pump Set
300 Mini Pumps are designed for convenient and accurate metering of all Group
Size A, B and C WEST SYSTEM resin and hardeners. They mount directly on the
resin and hardener containers and eliminate the mess involved with measuring by
weight or volume. 300 Mini Pumps are calibrated to deliver the proper working
ratio with one full pump stroke of resin for each one full pump stroke of
hardener.
The 300 Mini Pumps Set contains one resin pump and two hardener pumps.
105/205-206 pumps deliver approximately 0.8 fl oz of resin/hardener with one
full stroke of each pump. 105/207-209 pumps deliver approximately 0.9 fl oz of
resin/hardener with one full stroke of each pump.
As packaged, the pumps are ready to install on the Group Size B containers. A
package of extension tubes for Group Size A containers is included with the set.
Group Size C extension tubes are included in the 105-C Resin and in the 207-SC
or 209-SC packages.
If necessary, you can combine different group sized-as long as all of the pumps
have a yellow head. To avoid confusion and possible off-ratio metering, 300 Mini
Pumps have yellow heads, which should not be used in with any older pumps with a
white head (301 and 303 pumps).
Made of durable polypropylene, the pumps give years of dependable service.
Read and follow the priming, ratio verification and operating instructions that
come with the pumps.
|
