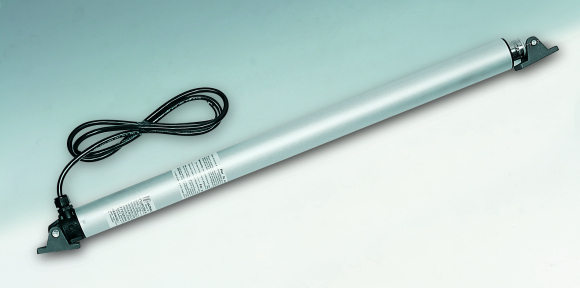

Uflex Av 3012 Electrical Hatch Lifter - Single Action

Uflex AV Series Electrical Hatch Lifter

Technical Features:

• According to the load required, the AV hatch lifter can be mounted individually, or in twin cylinder installations for heavier loads. It is also possible to install more then two AV actuators in multiple applications.
• Maximum load for single installations: 1200N (120 kg - 265 lbs)
• Maximum load for dual installations: 2400N (240 kg - 529 lbs)
• Maximum load is recommended not to be exceeded.
• Supplied with all mounting hardware.
• Stainless steel telescopic ram for manual operation in case of emergency.
• Available on request without manual emergency opening device for high performance boats.
• Circuit breaker to stop accidental overloading of the system and electronic stop at closed or full open position.
• IP 65 protection rated
• Speed: 25mm/sec no load applied, 17 mm/sec maximum load
• Current absorption in single installations: 10A at 12V, 5A at 24V
• Current absorption in dual installations: 20A at 12V, 10A at 24V
• AV 12VDC models are Ignition Protected. UL1500 - ISO8846 approved.

Specifications:

Volt- 12V DC
Stroke- 300 mm
Length (full closed actuator)- 677 mm (26.6")
