Details: |
|

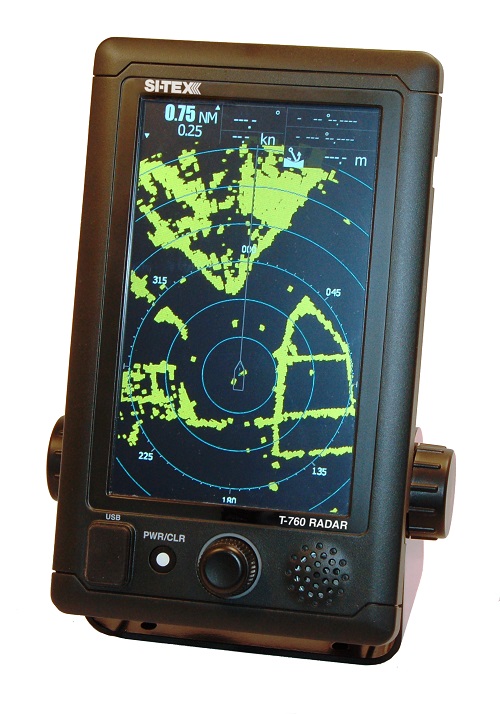

T-760 Compact Color Radar - 4kW 18" Radome 24 mile
Big radar performance and features are now available for any size boat — and
budget. A vertically oriented, slim case boasts advanced touch screen technology
and a host of professional features. Powerful 4kW output ensures superior target
acquisition and tracking in the most challenging conditions.
In the SI-TEX tradition, the new T-760 Series radar is ruggedly built to
withstand harsh conditions at sea on commercial as well as recreational vessels.
SI-TEX’s two-year limited warranty and Long Island, New York-based service
department are the navigator’s assurance of reliable performance and long-term
satisfaction.
Features:
- 7" color LCD display
- Intuitive touch screen/rotary dial control
- Standard 50 target AIS tracking
- Standard 10 target MARPA
- Multi-speed (16-48 rpm) antenna rotation for optimum performance in
real-world conditions
- Features include Relative Motion/True Motion/Head-Up/North-Up
- Optional color RGB video output
Specifications:
| Antenna/Scanner |
18" Radome |
| Output Power (peak) |
4 kW |
| Basic Range |
0.0625 - 24 NM |
| Beam Width |
H: 5.2˚ V: 25˚ |
| Rotation Speeds |
16-48 rpm |
| Display Size & Type |
7" Color LCD |
| Effective Diameter |
90 mm or more |
| Display Resolution |
800 x 480 pixels |
| Off-Centering |
2/3 radius of PPI |
| Presentation Modes |
Relative Motion, True Motion, Head-Up,
Course-Up |
| Anti Sea/Rain Clutter |
Auto/Manual |
| Trail Indication |
Off, 15s, 30s, 1min, 2min, 6min, 10min,
15min, 30min, Cont. |
| NMEA Input/Output |
Optional Color RGB Video Output |
| AIS Target Capacity* |
50 Targets |
| ATA Tracking Capacity/Range |
10 Targets/20 NM |
| Target Data** |
True Bearing, Range, True Course, True
Speed, CPA, TCPA |
| Target Alarms** |
CPA/TCPA, New Target, Lost Target,
System |
| Power Supply |
DC 12/24V - 10/+30% |
| Power Consumption |
Approx. 50W |
* Requires AIS receiver input.
** Requires bearing data, ship’s speed data and latitude/ longitude data input.
|
|
