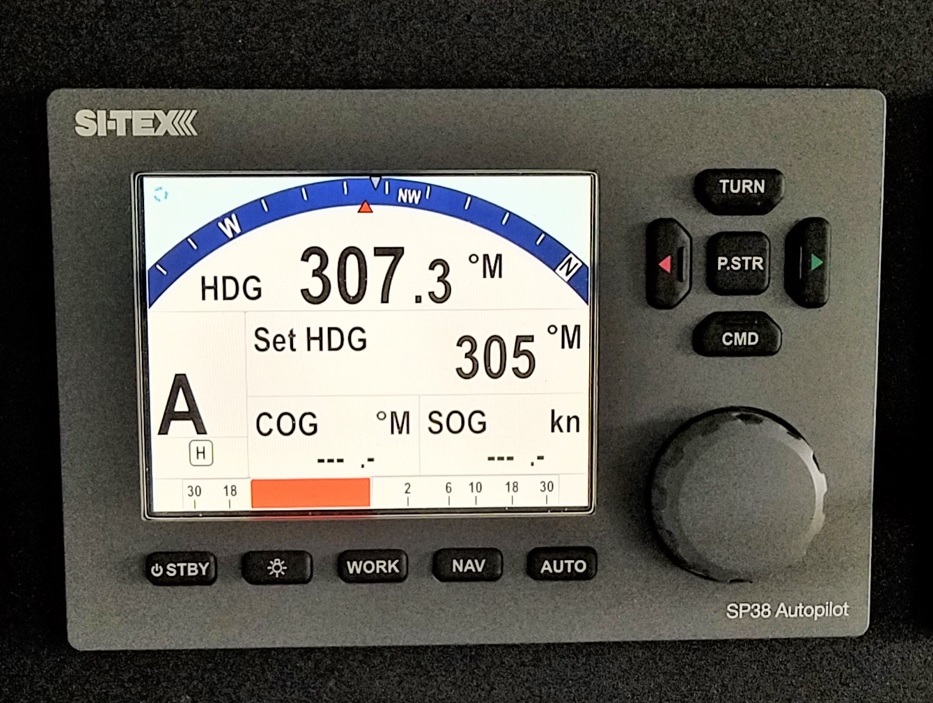

Sitex SP38 Autopilot Corepack Flux Gate Compass Rotary Feedback No Pump Model: SP38-2
- IST — Intelligent Steering Technology provides superior vessel steering capability
- ADAPTIVE steering for sea conditions and varying vessel speeds
- AUTO-SETUP — allows auto-drive detection, rudder response time, compass detection and calibration
- NMEA 2000, ETHERNET, and NMEA 0183 interface
- Configurable for Fishing, Offshore Vessels, Workboats, Towboats and Yacht’s
- WORK Mode suitable for Fishing Boats, Towboats and Workboats
- PRC- Proportional Rate Control feature provides gentle smooth steering response
- Multi-Station capability with security station lock
- SUNLIGHT viewable Color 5.7" LCD display
- NAV Mode provide adaptive precise track steering
- ALC — Automatic Leeway Compensation for Drift, Tide & Wind
- Fully compatible with onboard instruments and steering systems
- Optional Z-Drive interface allows 360 Azimuth drive interface
- Optional Automatic Bow-Thruster Control for hands free Sabiki Fishing or station keeping
- Multi-Language capability: English, Chinese, French, German, Norwegian, Spanish, Italian, Vietnamese, etc.
- Standard with Flush Mount kit, Optional Swivel mount bracket
- IP67 Waterproof — Control Head, TS4, NF4 and WS4
- RoHS & CE compliance for EMI and RFI immunity
- 9 level backlit LCD display
- LCD Display switches to Red Night Palette to protect Operators night vision
- Pre-defined parameter sets for full or semi-displacement, planning hulls, stern drives and sailboat applications
- Multiple steering parameters for Fast cruise, Slow cruise and Work modes
- Simple to use course knob with mechanical detent
- Multi-station capability with security station lock Automatic trim Adjustable yaw, turn rate and rudder settings PORT and STBD dodge buttons for collision avoidance
- Output for optional analog rudder angle indicator, up to 4 stations
- Fully compatible with onboard NMEA N2K instruments and most steering systems
The new SI-TEX SP-38 is a feature-packed professional autopilot ideal for a wide range of powerboats and commercial vessels up to about 150’ LOA. SI-TEX’s Intelligent Steering Technology (IST) learns vessel characteristics over time and fine-tunes itself for optimum performance. The SP-38 offers pre-defined operational parameter sets for full- or semi-displacement hulls, sterndrives and sailboats. It also offers a special Work Mode designed for commercial fishing boats, towboats and workboats. Proportional Rate Control (PRC) provides gentle and smooth steering response. Other professional features include Nav Mode for adaptive and precise track steering and Automatic Leeway Compensation (ALC) that adjusts for the effects of drift, tide and wind. An optional bow-thruster interface is available for precision drift fishing and hands free station keeping. Specifications
| Operating Voltage | 10 to 30 VDC | | Power Consumption | Average 0.5 Amps, 3 Amps Peak (Lower consumption capability with low backlight setting) | | Drive Output | 20 Amps | | Network | NMEA 2000 & Ethernet | | Navigational Interface | NMEA 0183 input/Output | | NMEA 0183 Output | Heading (10x per sec), Autopilot Status (1x per sec) | | Heading Reference | Fluxgate, Magnetic Compass, NMEA Compass or Sat Compass | | Course Resolution | 1° | | Course Detection | 0.5° |
|
