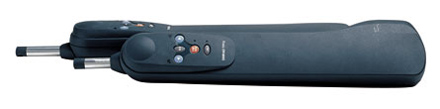

Simrad TP22 Tillerpilots
For Yachts up to 33ft - Simrad Tillerpilots are designed for high precision,
reliable autosteering while drawing low current to optimize battery life.
High performance for small to mid range sailboats Simrad Tillerpilots are
designed for high precision, reliable autosteering while drawing low current to
optimize battery life. The hard wearing, waterproof body contains all controls
and has been tested for many hours in total immersion. Exceptionally quiet in
use, the Tillerpilot gives fast and positive performance for effective steering
in a wide range of sea states and wind conditions. A range of pilots offers
performance to suit most small to medium sailboats.
The Simrad TP22 and Simrad TP32 Tillerpilots offer easy interfacing to
external devices using Simrad’s proprietary network system, SimNet. When
interfaced, enhanced options such as sail to wind or sail to waypoint are easily
accessed via the key pad. The recommendations assume typical coastal sailing
conditions and in circumstances where extended voyages or more extreme weather
conditions are expected, the choice of a higher specification pilot is
recommended including the full range of Simrad below deck pilots.
- Waterproof sealing for protection of the elements and reliable use
- Extremely quiet, enjoy the silence of sailing
- SimNet compatible, simple plug and play DIY installation
- Easy operation
AUTOPILOT / AUTOSTEERING
| Peak Thrust |
70kg |
| Max Boat Displacement |
5 tons |
| Max Boat Length |
11 m \ 36 ft |
| Drive System |
Screw thread |
| Intelligent Steering Action |
Yes |
| Fluxgate Compass |
Yes |
| Mounting Selectable Port Or Starboard |
Yes |
| Steer to GPS |
Yes |
| Steer to Wind |
Yes |
NETWORKING / CONNECTORS
| NMEA 0183 Input |
Yes |
| SimNet Control |
Yes |
POWER
| Power Supply |
12Vdc vDC |
| Power Consumption Auto |
0.5A |
| Power Consumption Standby |
0.06A |
OTHER
| Adjustable Gain |
Yes |
| Alarm: Audible and Visible |
Yes |
| Auto Seastate |
Yes |
| Auto Trim |
Yes |
| Automatic Tracking |
Yes |
| Gain |
1-9 |
| Night Illumination |
Yes |
| Non Volatile Memory |
Yes |
| Operating Temperature |
-10° to +55°C |
| Operating Temperature Stored |
-10° to +55°C |
| Remote Control Option |
Yes |
| Storm Proof |
Yes |
|
|
