  Simrad S2009 9" Broadband Fishfinder
Click to enlarge

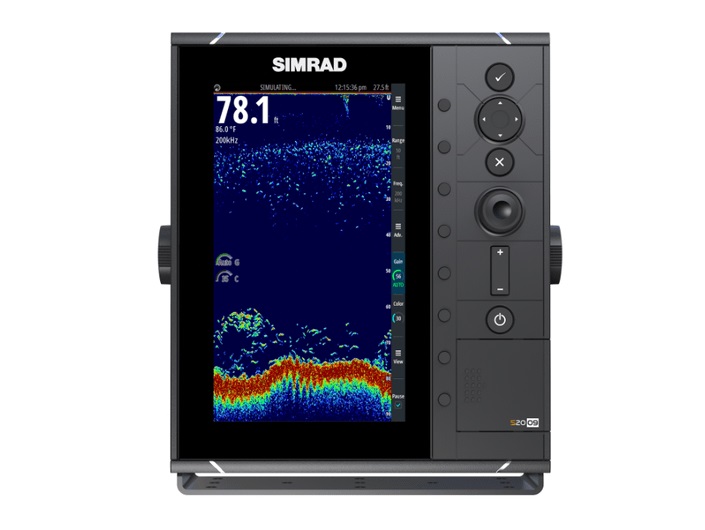

Simrad S2009 9" Broadband Fishfinder

Item #: SIM000-12185-001





Free 2 Day Shipping Available!

Join our email list and save 5%
Usually ships the next business day.
No restocking fees on return.
Click to verify BBB accreditation and to see a BBB report.


Sign up for our email specials and save 5% on this item!

Simrad S2009 Fish Finder

The Simrad S2009 Fish Finder combines CHIRP-enabled Broadband Sounder™ sonar with a 9-inch portrait display for maximum vertical detail, and intuitive keypad-driven operation for reliable control in all conditions. This dedicated echosounder integrates seamlessly with multifunction display and Simrad glass bridge systems, while offering charter captains and long-range sportfishing vessels the reliability of a self-contained sonar platform. Robust yet compact, the S2009 supports either bracket or flush-mount installation for an easy fit aboard any vessel.

Key Features

  • Dedicated fish finder with integrated Broadband Sounder™ module and CHIRP technology
  • High depth penetration and ping speed
  • Vertical heave compensation
  • 9-inch portrait display
  • High brightness ideal for outside installation
  • See clearly with White Line, White Marker, and Colour Erase features
  • Simple operation with 8 direct-access menu keys
  • Bracket and flush mounting options (bracket included)
  • Ethernet, NMEA0183 & NMEA2000 connectivity*

*Simrad Commercial S2009 and S2016 products currently only support limited Ethernet networking capabilities to Simrad BSM-2 and BSM-3 sounders. Full Ethernet networking to the Simrad line of Displays and ECDIS, as well as the SonarHub sounder module will be implemented in the RTM2 software release expected delivery June 2016.

Integrated Broadband Sounder™ Module

The S2009 includes an integrated Broadband Sounder™ module with plug-and-play transducer port, compatible with Simrad and Airmar transducers equipped with blue 7-pin connectors. Adapters are available to allow easy and cost-effective retrofit of existing Simrad, Airmar, and other third-party transducers.

CHIRP Technology

CHIRP sonar technology uses frequency-swept pulses to deliver higher resolution, improved target separation, and greater image clarity than traditional sonar. Simrad technology makes CHIRP available not just on special-purpose CHIRP transducers, but also via traditional single-frequency transducers. Vessels with a suitable transducer already installed can add CHIRP simply by installing an S2000-series Fish Finder, offering an extremely cost-effective upgrade.

Vertical Heave Compensation

If you’ve used your sounder in heavy seas, you may have noticed a ‘wavy’ or corrugated pattern to the sea floor on your display. Heave compensation works with a compatible satellite compass, such as the Simrad HS60 or HS70, to eliminate the vertical effects of wave action from sonar depth measurements. This counters the ‘wavy’ distortion on screen, enhancing the accuracy of bottom tracking in rough conditions.

9-inch Portrait Display

The S2009 maximises screen size where limited mounting space is available, with a compact 9-inch portrait display that’s perfect for centre consoles. Its vertical layout is well suited to sportfishing, displaying the water column with a high level of detail and making it easy to distinguish individual fish arches and other key features.

White Line, White Marker and Colour Erase

The S2009 Fish Finder offers a range of features to quickly and easily adjust the on-screen image to suit the task at hand.

- White Line clearly separates the water column from the bottom with a high-contrast white line, for enhanced bottom visibility.

- White Marker allows any user-selected colour from the fish finder image to be replaced with high-contrast white, highlighting specific sonar echoes corresponding to fish or other targets of interest.

- Colour Erase allows any selected colour to be blended into the background, eliminating unwanted noise or unimportant features from the display.

Keypad Operation with Direct-Access Menu Keys

The S2009 is operated by an integrated keypad and rotary dial. Direct-access menu keys beside the display provide intuitive control of on-screen menu options, for one-button access to key settings and features. With reliable, long-life operation and clear tactile feedback, the S2009’s large buttons are suitable for use in rough seas, while travelling at speed, and with wet or gloved hands.

Rugged Design with Flexible Mounting Options

Designed to meet the needs of serious offshore sportfishing enthusiasts and commercial fishing operators, the S2009 supports either flush-mount installation in a console or dash, or bracket mounting with an included gimbal bracket. Watertight rear connectors mean the S2009 is IPX7 water-resistant from all sides, in either type of installation.

Networking & Expansion

The S2009 includes Ethernet connectivity to share sonar data with other Simrad systems including NSS evo2 and NSO evo2 multifunction displays. The S2009 may also be used as a dedicated fish finder display for the built-in Broadband Sounder™ module on NSS evo2 systems, freeing your multifunction display for other purposes such as navigation, radar, or StructureScan® 3D imaging.

Other devices may be networked via the S2009’s NMEA 2000® and NMEA 0183® ports, enabling additional functionality such as marking a waypoint on your chartplotter via the fish finder’s history display to revisit a promising spot.

Insight Genesis Compatible

The S2009 is capable of recording sonar history to a full-sized SD memory card, easily inserted and removed via a waterproof access hatch on the front panel. Recorded sonar logs can then be uploaded from your PC or Mac to the cloud-based Insight Genesis™ service, which automatically creates custom fishing charts for use on your compatible Simrad chartplotter.


Languages 40 languages
Screen brightness 1200 cd/m2
Echosounder max depths 3,000 m / 10,000 ft (transducer-dependent)
Echosounder transducers Standard Broadband and single-channel CHIRP Transducers
Echosounder frequencies CHIRP 28-38 kHz, 40-60 kHz, 85-145 kHz, 130-210kHz, Broadband 28kHz, 38kHz, 50kHz, 83kHz, 200kHz
Display size 9-inch portrait
Display resolution 480 x 800
Network connections 1x NMEA0183, 1x NMEA2000, 1x Ethernet
Waterproof rating IPX7
Product width 224.3 mm / 8.83 in
Product depth 82.3 mm / 3.24 in
Product height 260.1 mm / 10.24 in
Power supply (supply voltage) 10.8-31.2 V DC
