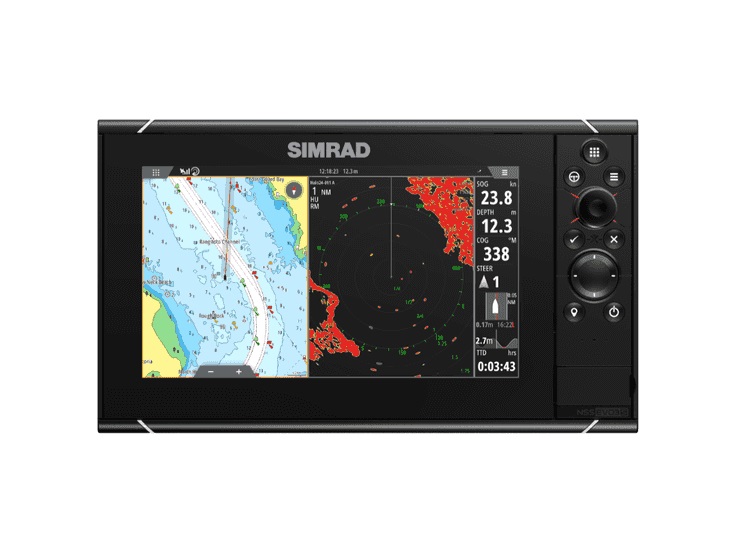

Simrad NSS9 EVO3S Combo MFD with C-MAP US Enhanced Map

Click to enlarge

Details:

Sign up for our email specials and save 5% on this item!

Simrad NSS evo3S 9in Display

Model: 000-15402-001

High Resolution, High Bright, SolarMax IPS Displays
Easy to use touchscreen UI as well as full keypad for simple and precise control in any sea conditions
Built-in advanced echosounder capable of 1kW Dual channel CHIRP, Forwardscan, Sidescan, Downscan and StructureScan 3D images
Take another step forward with Simrad’s premium network modules for the ultimate offshore performance
Halo Dome and Open Array Radars: S5100 Sportfishing Echosounder, Direct audio, autopilot and engine connection and control
Low profile glass dash styling
Built in Wi-Fi connectivity
Next Generation Processor
SolarMAX IPS Display Technology
Multi-touch screen and keypad hybrid control
Built-in Advanced Echosounder

NSS evo3S is a mid-life update to the NSS evo3. The key difference is a next generation processor. This greatly improves the speed and smoothness of the display. The NSS evo3 is already a feature packed product and the new processor in the evo3S means that each one of those features is now improved

Specifications

Physical
Dimensions	287 x 166 x 90 mm (11.30 x 6.55 x 3.50")with bracket 311 x 180 x 95 (11.30 x 7.07 x 3.72)
Weight	1.41kg/3.11lb
Environmental
Operating temperature range	-15°C to +55°C (5° F to 131° F)
Environment Shock Vibration	100,000 cycles of 20G
Storage temperature range	-20°C to +60°C (4°F to 140°F)
Water resitance	IPX6 and 7
Power
Supply voltage	10 - 31.2 V DC
Fuse rating	5A
Power consumption (Max)	21W
Display
Display backlight color	White
Display resolution	600 x 1280
Display screen brightness	1200 nits
Display size and type	High Visibility SolarMax HD® IPS 7" optically bonded TFT
Display viewing angles	80° top/bottom, 80° left/right
Connectivity
Ethernet	1 x 5 pin yellow connector x 1 Mbit
Bluetooth	Internal
NMEA2000 connectivity	1 x NMEA 2000 Micro-C port, 1 LEN
NMEA 0183 connectivity	1 x Transmit, 1 x Receive NMEA 0183, Baud Rates 4800, 9600, 19200, 38400. TX and RX use same baud rate. Optional data cable required (P/N 000-00129-001)
Video connectivity	2 x composite (RCA connectors)video inputs. Optional video/ data cable required (P/N 000-00129-001).
WiFi connectivity	Internal
Sonar
Sonar frequencies	40-250kHz 455-800kHz
Sonar max depth	3000’+ (tested with B175L)
Sonar output power	1kW RMS
Compliance	Compliance
GPS
GPS	Internal
GPS update rate	10 Hz
GPS channels	34
GPS correction	WASS, EGNOS, MSAS, GLONASS
GPS position accuracy	Horizontal Accuracy 3 m (9.8 ft)
GPS time to first fix	Cold start 50 sec, Satellite Reacquisition 5 sec

What's in the Box:

NSS evo3S 9" Display
NSS9 EVO3 SUN COVER
NSS9 EVO3 & ZEUS - 9 Mounting Bracket
NSS9 EVO3 & ZEUS3 - 9 DASH MOUNT KIT
NSS9 EVO3 & ZEUS3 — 9 EDGE BEZELS
Power Cable
