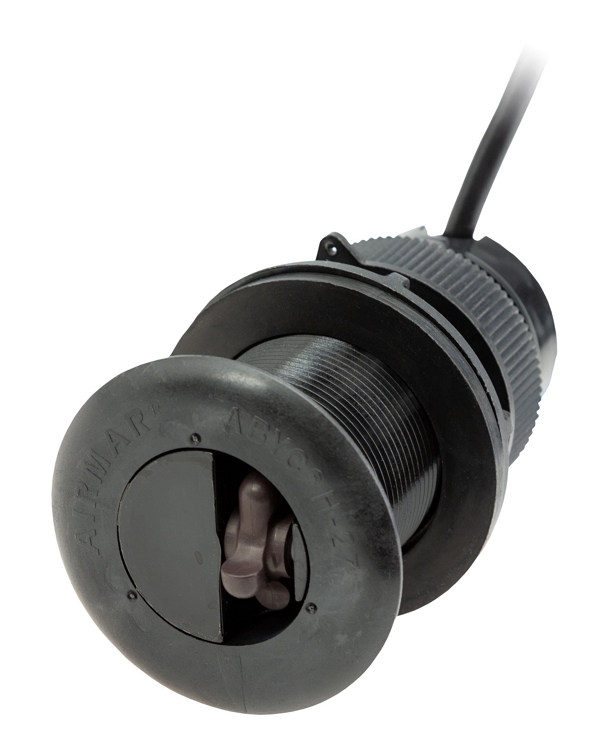

  Simrad DST810 Multi Sensor Airmar Smart Transducer Plastic Thru Hull
Click to enlarge

Simrad DST810 Multi Sensor Airmar Smart Transducer Plastic Thru Hull

Item #: SIM000-15735-001



Quantity:

Price:

$399.00



Free Shipping Available!


Usually ships the next business day.
No restocking fees on return.

Click to verify BBB accreditation and to see a BBB report.

Details:

Simrad IDST-810 active Depth, Speed, Temperature thru-Hull plastic 235 kHz transducer.

Model: 000-15735-001
  • 5 Hz speed output (5X per second) for visibly smoother speed-through-water reporting and faster data for better decision making
  • Integrated attitude sensor for heel and trim benefits sailing and power boats
  • Advanced Speed Calibration allows for manual speed entries for multiple heel angles and up to 10 speeds, formerly only possible through expensive PC software
  • DST810 stores configurations and delivers data to the NMEA 2000® network.
  • Depth, heel-corrected speed-through-water, heel and trim, and water temperature from one installed multisensor.
  • Popular depth sensor for shallow water performance.
Specifications
Acoustic WindowUrethane
Hull DeadriseUp to 22°
Data Update RateDepth 1X/second
Data Update RateSpeed 5X/second
Attitude Accuracy+/— 1° nominal after sensor calibration
Depth Frequency235 kHz
Minimum Depth Range0.5 m (1.6')
Maximum Depth RangeUp to 100 m (330')—NMEA 2000®
Speed RangeUp to 45 knots
Pressure Rating3 m (10')
Pulse Rate20,000 p/nm* (5.6 Hz per knot)—*p/nm = pulses per nautical mile
Supply Voltage9 VDC to 16 VDC—per NMEA 2000
Supply Current<200 mA—per NMEA 2000®
Wireless ProtocolBluetooth Low Energy (BLE)
Wireless RangeUp to 30 feet depending on mount location
Standard Cable Length6 m (20') DeviceNet—NMEA 2000®
Temperature Sensor Accuracy+/-0.5°C (+/-1.8°F)
Temperature Sensor Range-10°C to 40°C (14°F to 104°F)
NMEA 2000 Load Equivalency Number (LEN)3

What's in the Box:
  • DST-810 Insert
  • Plastic Housing
