Details: |
|

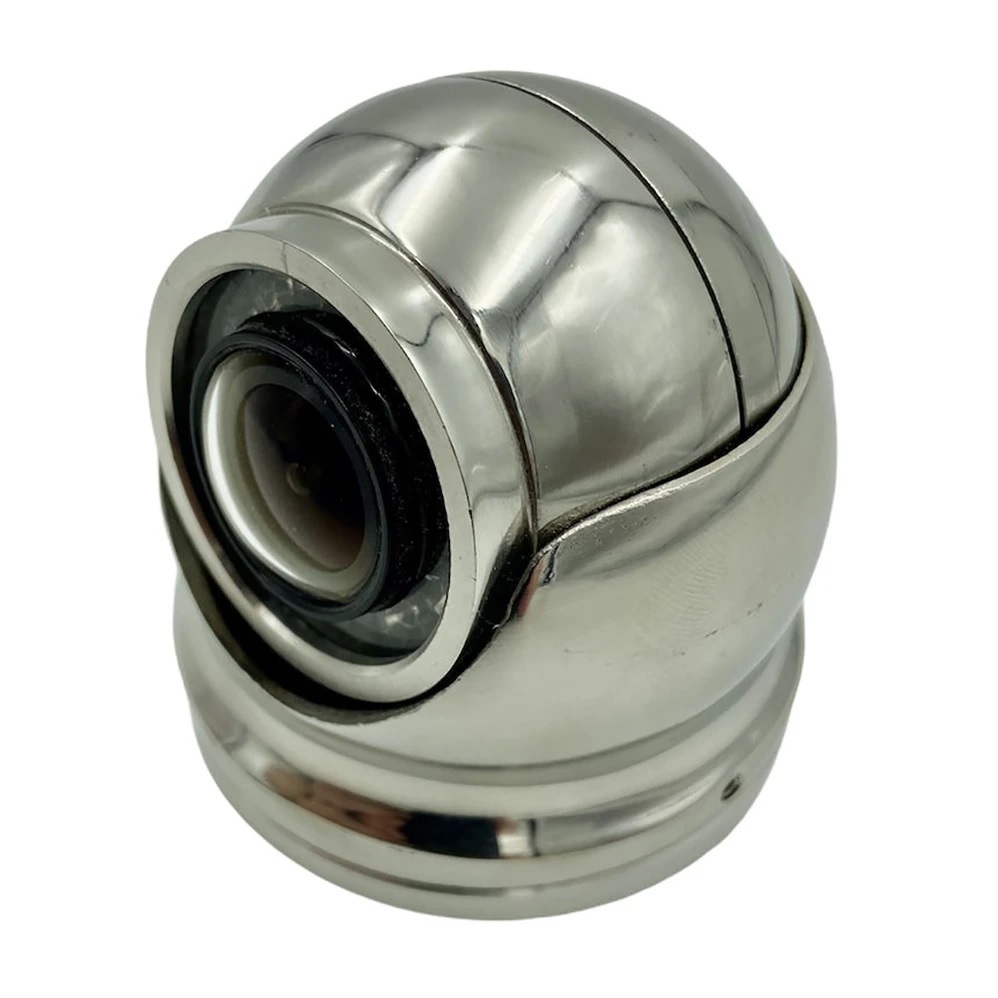

Simrad CAM-1 Marine grade 316 Stainless Steel IP Camera Model: 000-15876-001
- Pre-configured for use with Simrad, Lowrance and B&G MFDs
- Fast setup on each MFDs
- Rugged 316 Marine Grade Stainless Steel Housing
- 1.8mm 160° viewing angle - See the entire deck
- Compatible with NOS 20.2 or later
- Built In IR LED Illumination (10m Range)
- PoE IEEE802.3af Power Option
- Extremely Low Power Consumption
- IP66 Environmental Protection
Specifications
| Power | | PoE | IEEE802.3af (RJ45) | | DC | 12V DC (10-16V) DC 2.1/5.5mm Male CCTV power connector | | Power Consumption | | IR LED Off | 1.38W (0.1A at 13.8V DC) | | IR LED On | 2.76W (0.2A at 13.8V DC) | | Enviromental | | Operating temperature | -30°C to +60°C (-22°F to 140°F) | | IP Rating | IP66 | | Resolution | | Main stream | 1080p (1920x1080) | | Sub Stream | 448p (800x448) | | Protocol | RTSP | | Mechanical | | Lens | 1.8mm (160° Wide Angle) | | Sensor | 1/4" CMOS | | Housing | 316 Stainless steel | | Weight | 420g | | MFD resolutions capabilities: | | NSSevo3S, Zesu3S (9",12", 16") | High Resolution 1080p | | NSOevo3S MFDs, Zeus3S MFDs | High Resolution 1080p | | NSOevo3S MPU, Zeus3S MPU | High Resolution 1080p | | Information Display (9" & 12") | Low Resolution 448p | | NSSevo3, Zeus3 (7" & 9") | Low Resolution 448p | | NSOevo3 MFD, Zeus3 MFD | Low Resolution 448p | | NSOevo3 MPU, Zeus3 MPU | Low Resolution 448p | | Zeus2 MPU | Low Resolution 448p | | HDS Live |
|
|
