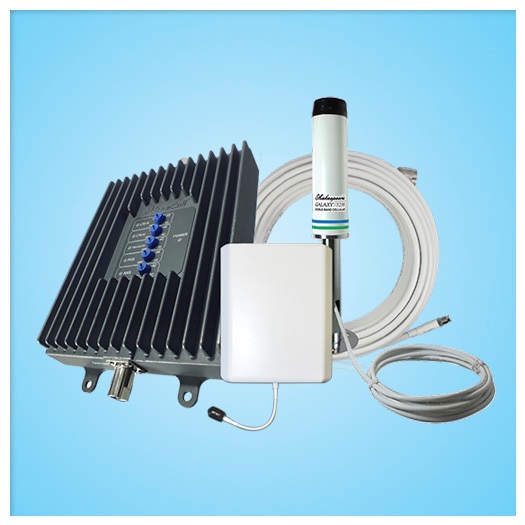

Shakespeare CA-VAT-10-R AnyWhere SuperHALO
5-Band Cellular Booster Kit
The Super HALO is a marine grade 2G, 3G and 4G
voice and data cellular reception solution. Its 5-band compatibility makes it
compatible with AT&T, T-Mobile and Verizon networks. The Super HALO is optimized
to boost cellular reception for your boat, car, recreational vehicle, home or
AnyWhere® else, with support of 10+ users simultaneously and an indoor antenna
to direct the signal where you really need it.
| Features |
Benefits |
|
Five Band |
Works with AT&T, T-Mobile
and Verizon 2G, 3G, & 4G networks |
|
Stealth Technology |
Uplink becomes dormant while
not in use to save power |
|
Automatic gain control (AGC) |
Does not overpower or
interfere the cell sites |
|
Automatic Shutdown |
Energy efficient and does
not interfere with the cell sites |
|
Manually Adjustable Gain |
Flexibility in antenna
placement and fine-tuning the system |
|
High quality metal
construction |
Durable and resilient |
|
FCC Certified |
Safe and legal |
|
Easy Set Up |
Energy Efficient and
Durable |
Increase Reception =
MORE BARS |
Universal Compatability |
CA-VAT-10-R Specifications
| Frequency- Uplink (Downlink)
MHz |
698-716 (728-746) / 776-787 (746-757) /
824-849 (869-894) / 1850-1915 (1930-1995) / 1710-1755 (2110-2155) |
| Input Impedance |
50 ohm |
| Maximum Gain |
50dB |
| VSWR |
≤2.0 |
| Standard Supported |
CDMA, WCDMA, GSM, EDGE, HSPA+, EVDO, LTE
and all cellular standards |
| Throughput |
100+ Mbps |
| Maximum RF Output Power |
1watt EIRP |
| Noise Figure |
5dB |
| Connectors |
FME Male (both ends) |
| Power Supply/ Consumption |
5-15VDC, 2.1A Max. @ 12 VDC |
| Dimensions |
7-7/8 in x 5 in x 1-3/16 in (20cm x
12.7cm x 8.09cm) |
| Weight |
2lbs 3oz (1.04kg) |
| RoHS Compliant |
Yes |
| FCC ID (USA) |
RSNMOBILE5 |
Kit Includes
- (2 ea.) internal antennas
- (1 ea.) external antenna
- (1. ea.) cell booster
- (2 ea.) coax cable
- (1 ea.) instruction sheet
|
|
