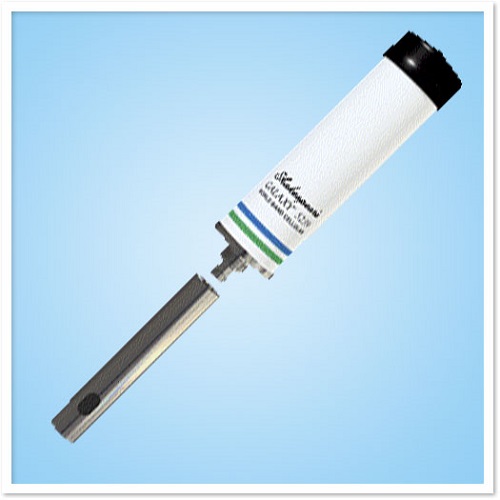

Shakespeare 5239 9.25" Galaxy World Band Cellular Antenna Model: 5239
- ?Full Band (698 — 2700 MHz) Broadband
- ?2G/3G/4G and WLAN systems
- ?Wi-Fi 802.11n compatible
- ?Designed for marine use
- ?Omni-directional antenna 3-4 dB Gain
- ?Easy to install
The Galaxy 5239 antenna is our smallest Galaxy antenna, but don’t let the size fool you. This World-band antenna provides coverage for 2G/3G/4G and WLAN systems for Cellular, PCS, AWS and LTE frequencies, as well as 802.11n Wi-Fi. This compact, feature rich antenna is at home on virtually any watercraft, and is fitted with a stainless steel ferrule and N-connector that are compatible with nearly all Shakespeare 1? -14 threaded mounts. Specifications
| Frequency | 698-960 / 1700-2700 MHz | | Input Impedence | 50 ohm | | Antenna Gain | 2-3dB @ 698-960 / 3-4dB @ 1700-2700 MHz | | VSWR | ? 1.8 | | Power Rating (W) | 10 | | Polarization Type | Vertical | | Radiation | Omni-directional | | Maximum Power (W) | 100 | | Connector Type | N-female | | Operating Temperature (F) | -22° to +176° | | Mounting | 1 in x 14 thread mount | | Ground Plane | Internal | | Material | Fiberglass | | Dimensions | 9.25? H x 2.625? D |
What's in the Box: |
|
Did you Know?
ALL products we sell are factory new and come with the full Manufacturers Warranty! |
|
|
|
| |
