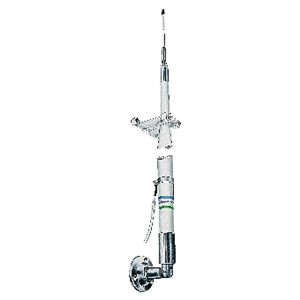

Whip Antenna with conductors running full length (no loading coil)
This award-winning performer is often referred to as "the standard of the industry" by virtue of its capabilities and popularity. Reinforced insulating qualities allow input power up to 1 kw. Conductors are permanently sealed in Shakespeare white fiberglass.
Chrome-plated brass ferrules, bottom ferrule has 1"-14 thread
Side feed termination band
Suggested mount: Style 409 or 410 Mounting Kit
Two sections: Base 162"; Tip 112"
Style 390 SSB
Technical Specifications:
Frequency: 2-30 MHz HF band with tuner
Bandwidth: Resonant frequency 10.8 MHz
SWR: N/A
Impedance (Ohms): N/A
Gain: N/A
Max. Input (Watts): 1000
DC Ground: N/A
Termination: Side termination
Height (feet): 23
Polarization: Vertical
Radiation pattern: Omni-directional
