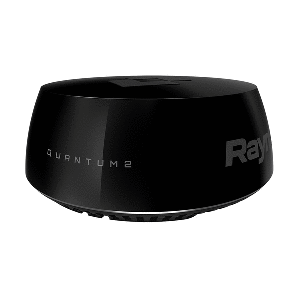

  Raymarine Black Q24D Quantum 2 Doppler Radar with 10M Power & Data Cables
Click to enlarge

Raymarine Black Q24D Quantum 2 Doppler Radar with 10M Power & Data Cables

Item #: RAYT70549



Quantity:

Price:

$2,759.99



Free Shipping Available!


In Stock - Ships the next business day.
No restocking fees on return.

Click to verify BBB accreditation and to see a BBB report.

Details:

Black Q24D Quantum 2 Doppler Radar with 10M Power & Data Cables

Keep inexperienced boaters and hidden dangers at bay, even in the most congested waterways.

Quantum™ 2 with Doppler collision avoidance technology makes it easy to discern potentially dangerous targets when navigating in high-traffic areas. Using advanced Doppler processing, Quantum 2 instantly highlights moving radar contacts and color codes to indicate whether they are inbound or outbound.

Features:

  • Black radome enclosure
  • WiFi and Ethernet
  • 10M power and data cables are included
  • Quantum 2 Doppler Radar, perfect for sailboats, RIBs, and smaller powerboats
  • Available as a standalone scanner with power and data cable
  • Provides excellent short-range detection and enhanced target detail with an 18’ (6m) minimum range
  • Simplified, fast installation, and the ability to utilize existing Raymarine scanner fixing points
  • Once installed, Quantum 2 starts right up and immediately provides awareness

Quantum 2 Black: Stay Aware With Style

Offering confident radar navigation and style, Quantum 2 Black adds a level of sophistication to any vessel.

Quantum 2 Black offers the same performance and safety-enhancing Doppler target tracking as the original white Quantum 2 in premium black housing.

Superior Collision Avoidance

Raymarine Quantum 2 Doppler target processing identifies and color codes moving radar contacts for instant recognition and reduced risk of collision.

Quantum 2 MARPA mode provides an effective means of dangerous target tracking and is the same technology trusted by the United States Coast Guard.

What’s In The Box:

  • 18 in. black radome
  • Power cable 10M (32.8 ft.)
  • Data cable 10M (32.8 ft.)
  • Fixing bolts with spring washers and flat washers (M8) x 4
  • Documentation

General Specifications:

  • Dimensions (Diameter|Height): 541.0 mm|209.5 mm
  • Weight: 5.6 kg
  • Supply Voltage: Either 12 V dc or 24 V dc nominal
  • Minimum: 10.8 V dc | Maximum: 31.2 V dc
  • Operating Voltage Range: Minimum: 10.8 V dc | Maximum: 31.2 V dc
  • Power Consumption: Transmit mode (maximum): 17 W | Standby mode: 7 W | Sleep mode (applies only to radars connected via Wi-Fi): 2 W
  • Waterproofing: IPX6
  • Operating Temperature Range: -10°C to +55°C
  • Storage Temperature Range: -25°C to +70°C
  • Additional Storage Conditions: Store upright; do not block vents on the underside
  • Humidity: Up to 95% at 35°C
  • Maximum wind speed: 100 kts

Transmitter Specifications:

  • Type: X-band solid-state transmitter with pulse compression technology
  • Transmit Frequency: 9354 MHz to 9446 MHz
  • Peak Power Output: 20W
  • Duplexer: Circulator
  • Pulse Widths (3 dB): 40 ns to 14.7 us
  • Chirp Lengths: 400 ns to 22 us
  • Pulse Repetition Frequency: 920 Hz to 5900 Hz
  • Chirp Bandwidth: Up to 32 MHz
  • Standby Mode: Scanner rotation - OFF | Scanner transmission - OFF | Wi-Fi link – ON

Antenna Specifications:

  • Type: Patch Array
  • Beamwidth (nominal): Horizontal: 4.9° | Vertical: 20°
  • Polarization: Horizontal
  • Rotation Speed: 24 rpm nominal

Receiver Specifications:

  • IF Frequency: 26 MHz
  • Noise Figure: Less than 4 dB

Doppler Specifications:

  • Target Tracking: Tracking of 25 simultaneous MARPA and/or ARPA targets
  • Target Filtering: True Motion Mode identifies only those objects that are moving relative to the vessel

Compatibility Specifications:

  • Radar Type: Quantum 2 with Doppler
  • MFD Compatibility: Axiom and Axiom Pro
  • Perfect for: Sailboats, RIBs, and smaller powerboats
  • Type: Solid State CHIRP Pulse Compression with Doppler target tracking
  • Range Performance: 24NM
  • Performance: Lightweight and easy to install. Excellent short and long-range performance. Detect targets as close as 18ft
  • Automatic Bird Mode: No
  • MARPA Target Tracking: Yes

Radar Specifications:

  • Transmitter Type: X-band solid-state transmitter with pulse compression technology
  • Target Tracking: Track up to 25 simultaneous Radar targets
  • Standby Mode: Rotation: OFF, Transmission: OFF, Wi-Fi: ON
  • Antenna Type: Patch Array
  • Noise: Less than 4 dB
  • Beamwidth (nominal): Horizontal: 4.9°, Vertical: 20°
  • Polarization: Horizontal
  • Duplexer: Circulator
  • Transmit Frequency: 9354 MHz to 9446 MHz
  • Pulse Repetition Frequency: 920 Hz to 5900 Hz
  • CHIRP Lengths: 400 ns to 22 µs
  • Pulse widths (3 dB)
  • 40 ns to 14.7µs
  • IF Frequency: 26 MHz
  • Rotation Speed: 24 RPM
  • Peak Power Output: 20 W

Conformance:

  • Standards: USA: 47CFR FCC Part 2 & Part 80 Certificate of Approval, Canada: RSS138 Iss. 1 Technical Acceptance Certificate, European Union & EFTA: Radio Equipment Directive 2014/53/EU Certificate of Opinion, Australia / New Zealand: ACMA Declaration of Conformity Compliance level 3

Environmental Specifications:

  • Relative Humidity: Up to 95% @ 35°C (95°F)
  • Additional Storage Conditions: Store upright; do not block vents on the underside
  • Waterproof Rating: IPx6
  • Storage Temperature: -25°C to +70°C (-13°F to 158°F)
  • Maximum Wind Speed: 100 knots
  • Operating Temperature: -10°C to +55°C (14°F to 131°F)

Physical Specifications:

  • Dimensions: Height: 209.5 mm (8.25 in), Diameter: 541.0 mm (21.3 in)
  • Weight: 5.6 kg (12.35 lbs)
