Details:

For solenoid controlled steering systems and Raymarine constant running hydraulic pumps

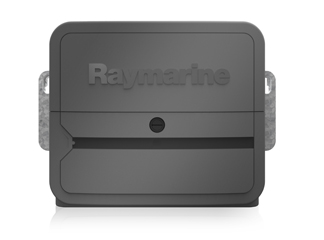

The rugged ACU-300 (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalk^ng bus.


Drive Current Output	Maximum continuous 5 A at supply voltage
Drive Clutch Output	No clutch connection
Connections	Rudder reference sensor Sleep switch Power Solenoid drive out / return Ground
Nominal supply voltage	12 V or 24 V
Operating voltage range	10.8 V to 31.2 V dc
Power consumption (standby) - main power supply	300 mA (12/24 V)
Power consumption (standby) - SeaTalk^ngpower supply	20 mA (12V)
SeaTalk^ngLEN (Load Equivalency Number)	1
SeaTalk^ngPower out	3 A at 12 V (fuse protected at 3 A)
Data connections	SeaTalk^ng
Installation environment	Operating temperature: -20ºC to +55ºC (-4ºF to +131ºF) Storage temperature: -30ºC to +70ºC (-22ºF to +158ºF) Relative humidity: max 93%
Waterproof rating	Drip resistant
Dimensions (W x H x D)	285 mm x 211.5 mm x 64.5 mm (11.2 in x 8.3 in x 2.5 in)
Weight	2.2kg (4.84 lbs)
Conformance	Europe: 2004/108/EC Australia and New Zealand: C-Tick, Compliance Level 2
