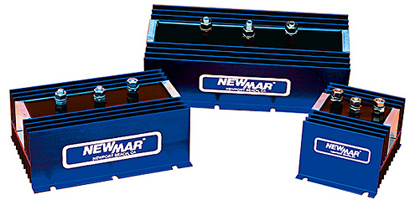

These heavy duty isolators allow charging multiple batteries automatically
from one or two alternators, and prevent discharge or 'dumping” of one battery
into another. Each battery is charged according to its need without
overcharging. rated for 12-48 volt negative ground DC systems. feature
conservatively rated diodes and a rustproof anodized aluminum heat sink case.
Models are available for 70, 120 and 165 amp alternators.
Features
Heavy duty construction
Rated for systems up to 48 volts DC, negative ground
Rust-proof anodized aluminum case
Stainless steel mounting hardware provided
Protective covers provided for terminals
Performance Specifications Operating temperature: -40 to +80° C Duty cycle: Continuous rating to 50° C Derate linearly to 70% @ 80° C Temp. rise: 5° C at full rated current (mount vertically for optimum
cooling) Voltage drop: 0.7V @ 50% load, 0.9V @ full load Note: These battery isolators are not compatible with self exciting
alternators. Please consult the manufacturer of your alternator if you are
unsure of your configuration.
Alternator
Sources
1
Battery Bank
3
Max Amperage
Input Capacity
70
Weight (Lbs)
2
Dimensions
(Inches)
Length
Width
Height
3.25
4.5
3.1
