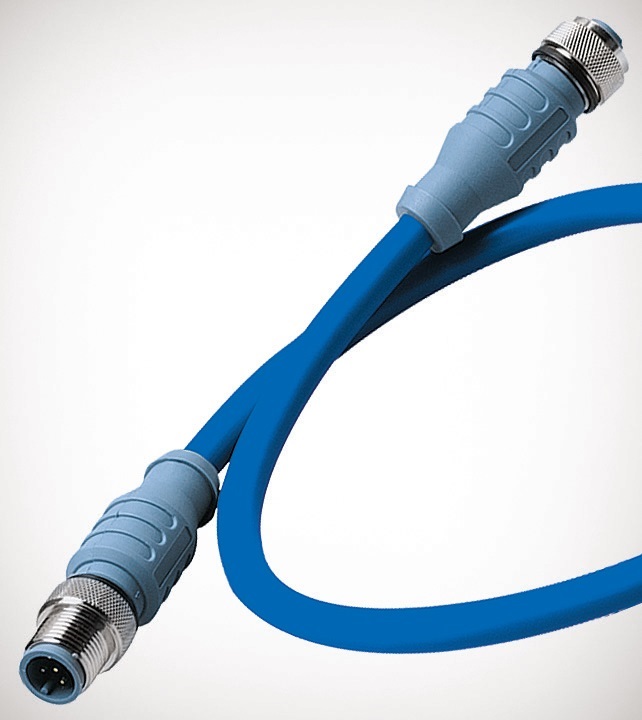

Maretron Blue Mid 2 Meter Cable Model: DM-DB1-DF-02.0
- Rugged, IP68 rated connectors for continued connection integrity in marine environments
- Various cable lengths to match installation requirements
- Optimized for voltage drop sensitive networks (long runs) because power pair wires have half the resistance of Micro cable
Double-ended cordsets are used for trunk or drop lines and make for a secure connection and simple timesaving installation. The connectors are keyed for error-free connection and are waterproof for continued operation even while submerged in the bilge. Specifications
| Mechanical | | Contact Carrier Mat/Color | Thermoplastic PUR/Blue | | Molded Body Mat/Color | Thermoplastic PUR/Blue | | Contact Mat/Plating | Brass/Gold | | Coupling Nut Mat/Plating | Brass/Nickel | | Connector Outside Diameter | 0.59 in | | Electrical | | Current rating | 4.0 Amps | | Voltage rating1 | 250v | | Cable | | Outer Jacket Mat/Color | PVC/Blue | | Conductor Insulation Material | PE (data pair), PVC (power pair) | | Number of Conductors | 2x16 (1.29mm) AWG,
2x20 (0.81mm) AWG,
20 (0.81mm) AWG Drain Wire | | Shielding (3 Levels) | Foil (Overall), Foil (Power Pair), Foil (Data Pair) | | Enviromental | | Protection class | IEC IP68, NEMA 1,3,4,6P | | Temperature rating | -40°C to 80°C to (-40°F to 176°F) | | Approvals | | (Cable) UL | PLTC 75°C Sunlight Resistant E90625, AWM 80°C 300V | | (Cable) CSA | CMX-OUTDOOR-CMG LL54185 75°C, AWM I/II A/B 80C 300V FT4 | | NMEA | NMEA 2000® Approved | | IEC | IEC 61162-3 |
|
|
