Details:

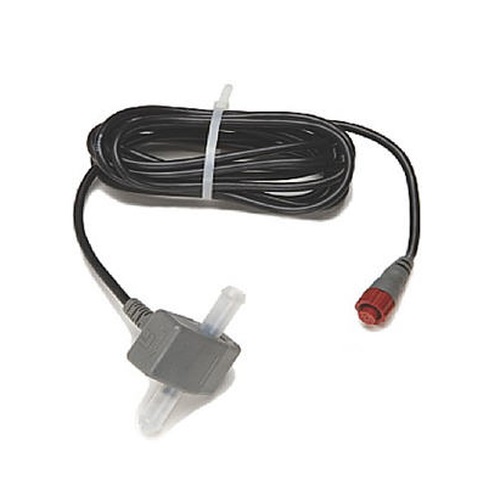

Fuel Flow Sensor Gasoline only. One required per engine. Up to 3 engines supported. Outputs:

Fuel Flow
Tank Fuel Used
Trip Fuel Used
Seasonal Fuel Used

Cable Length	10 Ft
Fuel Line Diameter	3/8" (9.5 mm) Inside Diameter
Flow Rate Measured	Optimized for 0.6-45 Gal/hr but can measure outside these values
Added Back Pressure to the fuel system	0.5 PSI at 20 Gal/hr; 1 PSI at 40 Gal/hr
Installation Location	Above the max level of the fuel tank, in-line after the fuel filter and any Y's or T's in the line
Package	The Fuel Flow Sensor, N2K T and 2 (two) 1" hose clamps
Fuel Type	Gasoline only. The Fuel Flow Sensor does not operate diesel engine fuel systems.
Hole required to route through a bulkhead	22mm (7/8")
Multiple Fule Flow sensors possible	Yes

Did you Know?

ALL products we sell are factory new and come with the full Manufacturers Warranty!

Related Accessories:

Item #	Description	Price	Order
LOW000-11522-001	Lowrance Fuel Data Manager NMEA 2000	$98.99
