Boatersland Marine > Satellite TV/Phone > KVH TracVision TV6 Satellite for North America

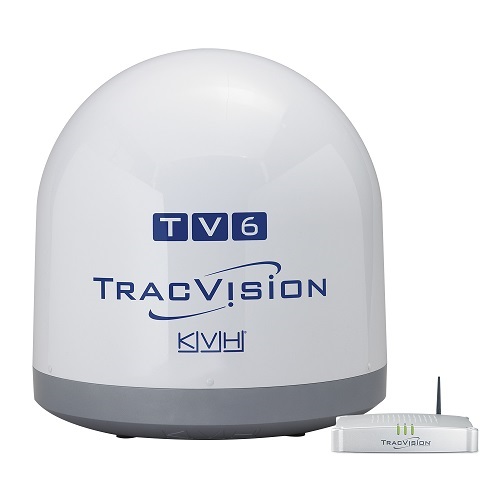

  KVH TracVision TV6 Satellite for North America
Click to enlarge

KVH TracVision TV6 Satellite for North America

Item #: KVH01-0369-07



Quantity:

24%

List Price:

$9,995.00

Price:

$7,619.55



Backordered
No restocking fees on return.

Click to verify BBB accreditation and to see a BBB report.

Details:

KVH TracVision TV6

Enjoy Your Favorite Television Programming – Everywhere You Cruise

With its IP-enabled TV-Hub, user-friendly interface, and single-cable installation, TracVision TV6 makes it easier than ever to enjoy your favorite television programming no matter where your seagoing adventures take you. This 60 cm (24-inch) marine satellite television antenna not only provides access to satellite television services worldwide, it supports multiple receivers so everyone onboard can watch what they want. Designed for an extended coverage area, this DVB-S2 compatible system is perfectly suited for boats heading offshore for short or long voyages.

Advanced Technology from the Leader in Marine Satellite TV

KVH, the leader in marine satellite television for 20 years, has integrated the latest advancements into the TracVision TV6, a versatile system that supports DIRECTV U.S., DIRECTV Latin America, DISH Network, Bell TV, and circular and linear Ku-band services worldwide:

  • TracVision TV-Hub, a sleek IP-enabled belowdecks unit with easy user interface that provides system information from any Wi-Fi mobile device or computer
  • Exclusive RingFire antenna technology for stronger signals, wider geographic coverage, and better reception
  • Advanced inertial-based stabilized search for fast satellite acquisition
  • High performance tracking with advanced algorithms for crystal-clear television picture in heavy seas

Highlights

  • Ultra high-efficiency, 60 cm (24-inch) diameter antenna features proprietary RingFire technology for stronger signals, wider geographic coverage, and better reception
  • Supports DIRECTV U.S., DIRECTV Latin America, DISH Network, Bell TV, and circular and linear Ku-band services worldwide
  • Supports multiple receiver installations
  • Linear Universal Quad LNB configuration offers built-in GPS and autoskew
  • Tri-Americas LNB option for seamless TV throughout the Americas
  • Sleek IP-enabled TracVision TV-Hub delivers easy setup and operation, and easy user interface for system information from any smartphone, tablet, smart TV, or computer
  • HDTV compatible (Ku-band services only)
  • Integrated Single Wire Multiswitch (SWM-8) built into belowdecks TV-Hub supports up to 8 DIRECTV receivers
  • Single coaxial cable for power, data, and video enables easy installations and retrofits
  • DVB-S2 compatible
  • Advanced inertial-based stabilized search for fast satellite acquisition
  • High performance tracking with advanced algorithms for crystal-clear television picture in heavy seas
  • Built-in worldwide satellite library
  • IP AutoSwitch option for multiple receiver installations – for simple auto-switching on Dish Pro and DiSEqC-compatible services

Tri-Americas LNB

If you cruise from North America to South America and back again, enjoy seamless satellite TV throughout your journey with KVH’s Tri-Americas LNB.

IP AutoSwitch

IP AutoSwitch for multiple receiver installations delivers simple auto-switching on Dish Pro and DiSEqC-compatible services so you can easily access the channels and programs you want to watch – even when they are not on the same satellite.

Complementary Systems

Complement your KVH TracVision satellite television system with a KVH TracPhone V-IP satellite communications system for fast and reliable satellite Internet and VoIP services. TracPhone V3-IP, V7-IP, and V11-IP are designed exclusively for KVH’s mini-VSAT Broadband network, the world’s no. 1 maritime VSAT service.

TracVision TV-Hub

The innovative TracVision TV-Hub integrates the advanced functionality of the TV-series system into one streamlined unit:

  • IP-enabled antenna control unit with Ethernet connection and built-in Wi-Fi interface allows access to system information from any Wi-Fi device
  • Automatic satellite switching makes it easy to access all programming and local channels wherever you travel, and with whatever service you use
  • Built-in SWM-compatible technology supports DIRECTV programming
  • Built-in DISH Pro output supports DISH Network and Bell TV service
  • Built-in DiSEqC protocol supports linear TV services around the world
  • Two output ports provide the flexibility to use legacy receivers and expand SWM capability
  • Status indicators quickly convey information about antenna function and power
  • 10-30 VDC input provides power to the TV-Hub, which in turn provides power to the antenna
  • NMEA 0183/2000 input for heading and GPS enable fastest satellite acquisition

RingFire Technology

KVH’s proprietary RingFire technology is a remarkable breakthrough in antenna design, fusing precisely shaped, tuned parabolic dish antennas with custom-designed, dual-mode feed tubes and uniquely modified LNBs. RingFire technology provides unmatched illumination of the reflector resulting in signal strengths comparable to competitors’ larger antennas. This means that with TracVision, you'll enjoy wider geographic coverage and better reception than with competing antennas, even in extreme weather.

Specifications

Description A 60 cm (24-inch) antenna provides an extended coverage area that is perfectly suited for boats heading offshore for short or long voyages
Satellite Coverage Regions Worldwide
Compatible Satellite TV Services Most Ku-band regional services worldwide
Antenna Dish Diameter 60 cm (24")
Antenna Unit Diameter x Height/Weight 66.6 cm x 69.9 cm (26.2" x 27.4") /
24.2 kg (53.4 lbs)
Minimum EIRP 46 dBW (Ku-band)
HDTV Compatible (requires a compatible HD receiver, HD-ready television, and subscription)
Yes (Ku-band services)
Skew Control Automatic
LNB Types Available (polarization/output) Linear Universal Quad
DIRECTV L.A. Circular
Circular
Tri-Americas Circular
Tracking Technology High-Performance (HP) tracking
User Interface TV-Hub web interface
Tri-Americas LNB Compatible Yes
Elevation/Azimuth Range +10° to +80°/720°
System Power 10-30 VDC
53 watts nominal
Antenna Operating Temperature -25°C to +55°C
(-13°F to +131°F)
Antenna Survival Temperature -25°C to +70°C
(-13°F to +158°F)
