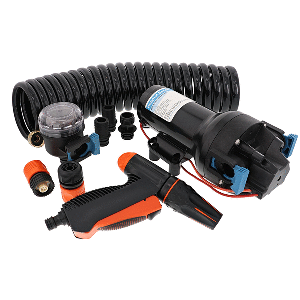

Jabsco Hotshot HD6 Heavy Duty Washdown Pump with 25´ Hosecoil - 12 Volt - 6 GPM - 70 Psi

Click to enlarge

Details:

HotShot HD6 Heavy Duty Washdown Pump with 25' HoseCoil - 12V - 6 GPM - 70 PSI

Years of clean decks and satisfaction in the form of robust and reliable high-flow and high-pressure diaphragm pumps. The Jabsco legacy of exceptional products continues with this updated and improved lineup of washdown pumps and kits.

HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life.

Standard models provide exceptional performance in an economical footprint. A plastic housing protects the motors from corrosion.

Features:

Co-molded diaphragm technology for long life and durability
HD models feature heavy duty, motors and cast aluminum lower housings which allow for long-life, even at high pressures
Efficient and quiet operation
Integrated, sealed pressure switch for on-demand operation
Self-priming allows for installation versatility
Can run dry without damage
Quick connect ports for ease of installation, servicing, and maintenance
Vibration dampening mounting feet
Full kit versions available which include 25' (7.6m) hose coil

Specifications:

Motor design: Brushed, permanent magnet TENV
Pumphead upper housing material: Glass fiber reinforced polypropylene
Diaphragm: Co-molded TPV
Check valves: EPDM
Max inlet pressure: 30 PSI (2.1 Bar)
Fluid temperature range: 32°F – 140°F (0°C – 60°C)
Dry self-priming capability: 7ft min (2.1m min)
Certifications: CE, ISO8846, RCM
Ingress protection: IPX6

Fittings & Accessories:

Quick Connect straight hosebarb and GHT fittings. Size varies by model.
90° 20 mesh Quick Connect strainer
Trigger nozzle & Quick Connect hose adapters
Kit version includes 25' deluxe HoseCoil

Warning WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.
