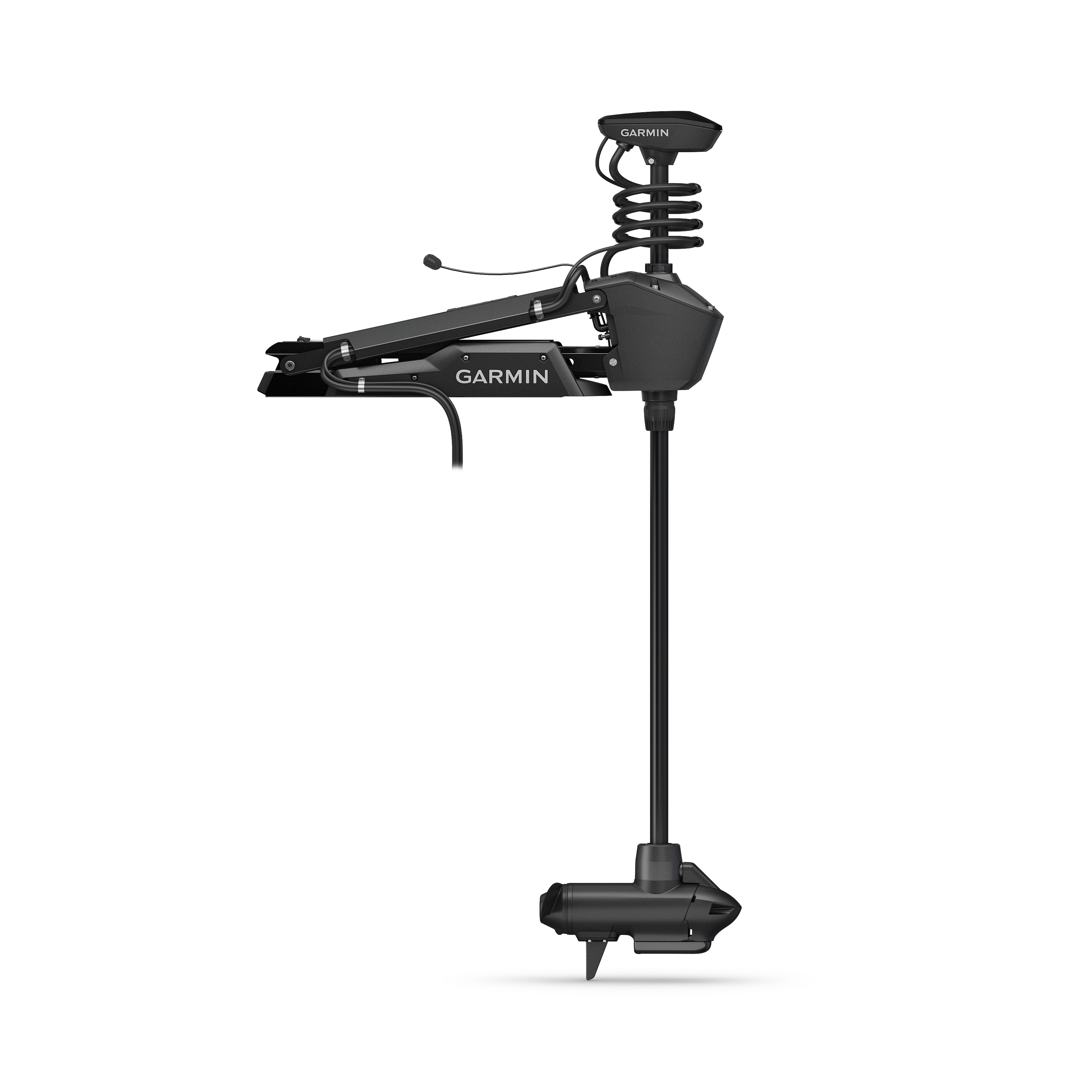

  Garmin Force Trolling Motor 57" Shaft
Click to enlarge

Garmin Force Trolling Motor 57" Shaft

Item #: GAR010-02025-00



Quantity:

Price:

$3,649.99



Free Shipping Available!


Usually ships the next business day.
No restocking fees on return.

Click to verify BBB accreditation and to see a BBB report.

Details:

Garmin Force Trolling Motor

57" Shaft

Model: 010-02025-00
  • With more power1 than its competition, it’s the most powerful trolling motor to get you on fish faster and counter the winds and current to stay on them
  • Extremely quiet high-efficiency brushless motor operates at 36 V or 24 V to keep you on the water longer
  • Simple chartplotter integration via wireless connection makes it easy to create routes to waypoints and to follow tracks
  • Precise anchor lock holds your boat in the same location while you fish via integrated heading sensor and GPS
  • Integrated high-wide CHIRP traditional and Ultra High-Definition ClearVü and SideVü scanning sonars with nearly imperceitble sonar noise from interference
  • Wireless foot pedal provides instant control and responsiveness; it feels and steers like a cable-steered pedal
  • Handheld remote control features full-color, sunlight-readable transflective display and gesture steering for point-and-go navigation — and it floats
  • Robust design is built for long-lasting quality and reliability; limited lifetime warranty on the shaft
  • Quiet steering and overall operation

Fish with force using the 57" Force™ trolling motor. It’s the most powerful, most efficient trolling motor available yet still extremely quiet. Wireless chartplotter connectivity provides navigation, autopilot and anchor lock capabilities. Use the precise anchor lock to hold your boat in the same location while you fish. The Force motor also includes high-wide CHIRP traditional sonar and built-in Ultra High-Definition sonar that provides exceptionally clear images with nearly imperceptible sonar noise interference from the motor. The highly efficient brushless motor operates at either 36 V or 24 V to use less energy, so you can fish longer. It includes a wireless foot pedal that provides instant control and responsiveness — yet feels and steers like a cable-steered pedal. The handheld remote control allows you to navigate with simple point-and-go gesture steering.

Not avalable for sale in the state of Louisianaupdated 10/14/2019

Specifications
Trolling Motor Specs
Shaft length57"
For use inFreshwater only
Mounting locationBow
Mount styleScissor-style mount
Max thrust100 lbs per ISO 13342 using high-efficiency propeller at 36 Vdc; 80 lbs per ISO 13342 using high-efficiency propeller at 24 Vdc
Voltage24 Vdc or 36 Vdc
Electric steeringYes
Lift-assistDual gas springs
Built-in heading sensorYes
Built-In GPSYes, high-sensitivity GPS
Warranty3-year limited lifetime on shaft
Water rating (components above water)IPX7
Wireless remote includedYes
Foot pedal includedYes
Battery indicatorYes
Variable speed controlYes
Sonar Specs
Frequencies supported
CHIRP sonarHigh wide CHIRP 150-240 kHz
ClearVüUltra-high definition 800 kHz
SideVüUltra-high definition 1,200 kHz and 455 kHz
Partial frequencies supported
CHIRP sonarHigh wide CHIRP 150-240 kHz
ClearVü800 kHz
SideVü455 kHz
Transmit power350 W
Maximum depth
CHIRP sonar800’
ClearVü200’
SideVü (1,200 kHz)125’ to each side; 250’ total at a max depth of 30'
SideVü (455 kHz)500’ to each side; 1,000’ total
Depth/speed/temperatureDepth and temperature
Number of pins12-pin (orange connector)
Autopilot FeaturesYes
Route followingYes
Anchor lockYes
Heading holdYes
Cruise controlYes
Gesture featuresYes, manual+, heading hold+, jog+
FOOT PEDAL SPECIFICATIONS
Dimensions12" L x 9" W x 4 1/2" H
Wireless communicationYes
Power installation12 V wired or battery powered (2 AA)
AA battery life1 full season
Waterproof ratingIPX7
Adjustable pedal resistanceYes
REMOTE CONTROL SPECIFICATIONS
Display size1.2" (30.4 mm) diameter
Display resolution240 x 240 pixels
Display typeColor, sunlight-visible, transflective memory-in-pixel (MIP)
Chartplotter userprogrammable keysYes
Autopilot feature controlYes
Water ratingIPX7
Battery lifeTypical use with backlight at low — 43 weeks
FloatsYes
PACKAGING SPECIFICATIONS
Gift box dimensions (W x H x D):72.4" x 12.2" x 20.5" (184.0 x 31.0 x 52.0 cm)
Gift box weight:95.0 lbs (43.1 kg)
Master carton quantity:1

What's in the Box:
  • Trolling motor, foot pedal, remote control, high-efficiency prop, assembly and mounting hardware and documentation
